    Some chemical and physical properties of the halogens are summarized in Table \(\PageIndex{1}\). It can be seen that there is a regular increase in many of the properties of the halogens proceeding down group 17 from fluorine to iodine. This includes their melting points, boiling points, the intensity of their color, the radius of the corresponding halide ion, and the density of the element. On the other hand, there is a regular decrease in the first ionization energy as we go down this group. As a result, there is a regular increase in the ability to form high oxidation states and a decrease in the oxidizing strength of the halogens from fluorine to iodine.

    Table \(\PageIndex{1}\): Properties of Group 17 (The Halogens)
    Property F Cl Br I
    Atomic number, Z 9 17 35 53
    Ground state electronic configuration [He]2s2 2p5 [Ne]3s2 3p5 [Ar]3d10 4s2 4p5 [Kr]4d10 5s2 5p5
    color pale yellow gas yellow-green gas red-brown liquid blue-black solid
    Density of liquids at various temperatures, /kg m-3 1.51 (85 °K) 1.66 (203 °K) 3.19 (273 °K) 3.96 (393 °K)
    Melting point, /K 53.53 171.6 265.8 386.85
    Boiling point, /K 85.01 239.18 331.93 457.5
    Enthalpy of atomization, ΔaH° (298K) / kJ mol-1 79.08 121.8 111.7 106.7
    Standard enthalpy of fusion of X2, ΔfusH°(mp) / kJ mol-1 0.51 6.4 10.57 15.52
    Standard enthalpy of vaporization of X2, ΔvapH°(bp) / kJ mol-1 6.62 20.41 29.96 41.57
    First ionization energy, IE1 / kJ mol-1 1681 1251.1 1139.9 1008.4
    ΔEAH1°(298K) / kJ mol-1 -333 -348 -324 -295
    ΔhydH°(X-,g) / kJ mol-1 -504 -361 -330 -285
    ΔhydS°(X-,g) / JK-1 mol-1 -150 -90 -70 -50
    ΔhydG°(X-,g) / kJ mol-1 -459 -334 -309 -270
    Standard redox potential, E°(X2 /2X-) /V 2.87 1.36 1.09 0.54
    Covalent radius, rcov = ½ X-X bond length /pm 72 100 114.2 133.3
    Ionic radius, rion for X- /pm 133 181 196 220
    van der Waals radius, rv /pm 135 180 195 215
    X-X(g)bond energy /kJ mol-1 159 243 193 151
    H-X(g)bond energy /kJ mol-1 562 431 366 299
    C-X(g)bond energy /kJ mol-1 484 338 276 238
    Pauling electronegativity, χP 3.98 3.16 2.96 2.66

    Color

    The origin of the color of the halogens stems from the excitation between the highest occupied π* molecular orbital and the lowest unoccupied σ* molecular orbital. The energy gap between the HOMO and LUMO decreases according to F2 > Cl2 > Br2 > I2. The amount of energy required for excitation depends upon the size of the atom. Fluorine is the smallest element in the group and the force of attraction between the nucleus and the outer electrons is very large. As a result, it requires a large excitation energy and absorbs violet light (high energy) and so appears pale yellow. On the other hand, iodine needs significantly less excitation energy and absorbs yellow light of low energy. Thus it appears dark violet. Using similar arguments, it is possible to explain the greenish yellow color of chlorine and the reddish brown color of bromine.

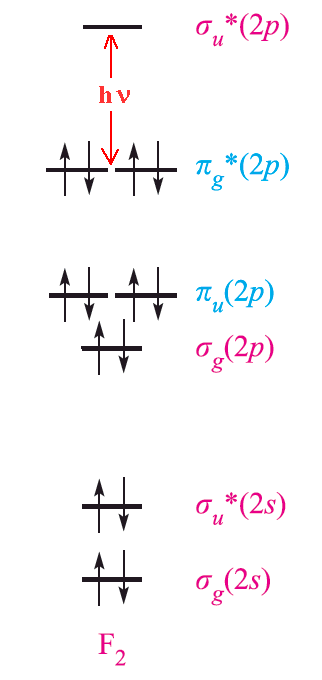

    Figure \(\PageIndex{1}\): Molecular orbital diagram for fluorine.

    The halogens show a variety of colors when dissolved in different solvents. Solutions of iodine can be bright violet in CCl4, pink or reddish brown in aromatic hydrocarbons, and deep brown in alcohols, for example. This variety can be explained by weak donor-acceptor interaction and complex formation. The presence of charge-transfer bands further supports this since they are thought to be derived from interaction with the HOMO σu* orbital.

    The X-ray structure of some of these complexes have been obtained, and often the intense color can be used for characterization and determination such as the bright blue color of iodine in the presence of starch. In the case of the solid formed between dibromine and benzene, the structure is shown below and a new charge transfer band occurs at 292 nm. The Br-Br bond length is essentially unchanged from that of dibromine (228 pm).

    Figure \(\PageIndex{2}\): Structure of dibromine and benzene complex

    In a study of the reaction of dibromine with substituted phosphines in diethyl ether, all but one showed a tetrahedral arrangement where one bromine was linked to the phosphorus.[3]

    \[R_3P + Br_2 (Et_2O, N_2/r.t.) \rightarrow R_3PBr_2 \label{1} \]

    The X-ray study of the triethylphosphine was interpreted as [Et3PBr]Br, where the Br-Br separation was 330 pm. This is considerably longer than the 228 pm found above and was taken to mean that the compound was ionic. In the case of the tri(perfluorophenyl)phosphine, however, the structure showed both bromines linked to give a trigonal bipyramid arrangement with D3 symmetry. Why (C6F5)3PBr2 was the only R3PBr2 compound that adopted trigonal bipyramidal geometry was reasoned to be due to the very low basicity of the parent tertiary phosphine.

    Melting and Boiling Points

    Intermolecular forces are the attractive forces between molecules without which all substances would be gases. The various types of these interactions span large differences in energy and for the halogens and interhalogens are generally quite small. The dispersion forces involved in these cases are called London forces (after Fritz Wolfgang London, 1900-1954). They are derived from momentary oscillations of electron charge in atoms and hence are present between all particles (atoms, ions and molecules).

    The ease with which the electron cloud of an atom can be distorted to become asymmetric is termed the molecule's polarizability. The greater the number of electrons an atom has, the farther the outer electrons will be from the nucleus, and the greater the chance for them to shift positions within the molecule. This means that larger nonpolar molecules tend to have stronger London dispersion forces. This is evident when considering the diatomic elements in group 17, the Halogens. All of these diatomic elements are nonpolar, covalently bonded molecules. Descending the group, fluorine and chlorine are gases, bromine is a liquid, and iodine is a solid. For nonpolar molecules, the farther you go down the group, the stronger the London dispersion forces.

    To picture how this occurs, compare the situation 1) where the electrons are evenly distributed and then consider 2) an instantaneous dipole that would arise from an uneven distribution of electrons on one side of the nucleus. When two molecules are close together, the instantaneous dipole of one molecule can induce a dipole in the second molecule. This results in synchronized motion of the electrons and an attraction between them. 3) Multiply this effect over numerous molecules and the overall result is that the attraction keeps these molecules together, and for diiodine is sufficient to make this a solid.

    Figure \(\PageIndex{3}\): On average the electron cloud for molecules can be considered to be spherical in shape. When two non-polar molecules approach, attractions or repulsions between the electrons and nuclei can lead to distortions in their electron clouds (i.e., dipoles are induced). When more molecules interact, these induced dipoles lead to intermolecular attraction.

    The changes seen in the variation of MP and BP for the dihalogens and binary interhalogens can be attributed to the increase in the London dispersion forces of attraction between the molecules. In general they increase with increasing atomic number.

    Figure 4:

    Redox Properties

    The most characteristic chemical feature of the halogens is their oxidizing strength. Fluorine has the strongest oxidizing ability, so that a simple chemical preparation is almost impossible and it must be prepared by electrolysis. Note that since fluorine reacts explosively with water, oxidizing it to dioxygen, finding reaction conditions for any reaction can be difficult. When fluorine is combined with other elements they generally exhibit high oxidation states. Chlorine is the next strongest oxidizing agent, but it can be prepared by chemical oxidation. Most elements react directly with chlorine, bromine and iodine, with decreasing reactivity going down the group, but often the reaction must be activated by heat or UV light. [2] The energy changes in redox process are:

    1. Enthalpy of atomization,
    2. ΔEAH1,
    3. ΔhydH°(X-,g)

    The redox potential, E°, X2/2X-, measures a free-energy change, usually dominated by the ΔH term. The values in the Table below show that there is a decrease in oxidizing strength proceeding down the group (2.87, 1.36, 1.09, 0.54 V). This can be explained by comparing the steps shown above.

    • 1) atomization of the dihalide is the energy required to break the molecule into atoms:

    \[½ X_{2(g)} \rightarrow X_{(g)} \label{2} \]

    Note that only F2 and Cl2 are gases in their natural states, so the energies associated with atomization of Br2 and I2 require converting the liquid or solid to gas first.

    • 2) ΔEAH1 is the energy liberated when the atom is converted into a negative ion and is related to the Electron Affinity

    \[X_{(g)} + e^- \rightarrow X^-_{(g)} \label{3} \]

    Addition of an electron to the small F atom is accompanied by larger e-/e- repulsion than is found for the larger Cl, Br or I atoms. This would suggest that the process for F should be less exothermic than for Cl and not fit the trend that shows a general decrease going down the group.

    • 3) ΔhydH°(X-,g) is the energy liberated upon the hydration of the ion, the Hydration energy.

    \[X^-_{(g)} + H_2O \rightarrow X^-_{(aq)} \label{4} \]

    The overall reaction is then:

    \[½ X_{2(g)} \rightarrow X^-_{(aq)} \label{5} \]

    Table \(\PageIndex{2}\)

    Halogen atomization energy
    (kJ mol-1)
    ΔEAH1
    (kJ mol-1)
    hydration enthalpy
    (kJ mol-1)
    overall
    (kJ mol-1)
    F +79.08 -333 -504 -758
    Cl +121.8 -348 -361 -587
    Br +111.7 -324 -330 -542
    I +106.7 -295 -285 -473

    This shows a very negative energy change for the fluoride compared to the others in the group. This comes about because of two main factors: the high hydration energy and the low atomization energy. For F2 2) is less than for Cl2, but since the energy needed to break the F-F bond is also less and the hydration more, the total energy drop is much greater. In spite of their lower atomization energies, Br2 and I2 are weaker oxidizing agents than Cl2 and this is due to their smaller ΔEAH1 and smaller ΔhydH°.

    It can be seen that the ΔEAH1 value for fluorine is in between those for chlorine and bromine and so this value alone does not provide a good explanation for the observed variation.

    Each of the halogens is able to oxidize any of the heavier halogens situated below it in the group. They can oxidize hydrogen and nonmetals such as:

    \[X_2 + H_{2(g)} \rightarrow 2HX_{(g)} \label{6} \]

    In water, the halogens disproportionate according to:

    \[X_2 + H_2O_{(l)} \rightarrow HX_{(aq)} + HXO_{(aq)} \label{7} \]

    where \(X=Cl, Br, I\). When base is added then the reaction goes to completion forming hypohalites, or at higher temperatures, halates; for example, heating dichlorine:

    \[3Cl_{2(g)} + 6OH^-_{(aq)} \rightarrow ClO^-_{3(aq)} + 5Cl^-_{(aq)} + 3H_2O(l) \label{8} \]

    First Ionization Energies

    The trend seen for the complete removal of an electron from the gaseous halogen atoms is that fluorine has the highest IE1 and iodine the lowest. To overcome the attractive force of the nucleus means that energy is required, so the Ionization Energies are all positive. The variation with size can be explained, since as the size increases it take less energy to remove an electron. This inverse relationship is seen for all the groups, not just group 17. As the distance from the nucleus to the outermost electrons increases, the attraction decreases so that those electrons are easier to remove. The high value of IE1 for fluorine is such that it does not exhibit any positive oxidation states, whereas Cl, Br and I can exist in oxidation states as high as 7.

    Oxidation states

    Fluorine is the most electronegative element in the periodic table and exists in all its compounds in either the -1 or 0 oxidation state. Chlorine, bromine, and iodine, however, can be found in a range of oxidation states including: +1, +3, +5, and +7, as shown below.

    Table \(\PageIndex{3}\): Common Oxidation States for the Halogens
    Oxidation States Examples
    -1 CaF2, HCl, NaBr, AgI
    0 F2, Cl2, Br2, I2
    1 HClO, ClF
    3 HClO2, ClF3
    5 HClO3, BrF5, [BrF6]-, IF5
    7 HClO4, BrF6+, IF7, [IF8]-

    In general, odd-numbered groups (like group 17) form odd-numbered oxidation states, and this can be explained since all stable molecules contain paired electrons (free radicals are obviously much more reactive). When covalent bonds are formed or broken, two electrons are involved, so the oxidation state changes by 2.

    When difluorine reacts with diiodine, initially iodine monofluoride is formed.

    \[I_2 + F_2 \rightarrow 2IF \nonumber \]

    Adding a second difluorine uses two more iodine valence electrons to form two more bonds:

    \[2IF + F_2 \rightarrow IF_3 \nonumber \]

    References

    1. "Inorganic Chemistry" - C. Housecroft and A.G. Sharpe, Prentice Hall, 3rd Ed., Dec 2007, ISBN13: 978-0131755536, ISBN10: 0131755536, Chapter 17.
    2. "Chemistry. The Molecular Nature of Matter and Change" - M.S. Silberberg, McGraw Hill Higher Education, 4th Ed., 2006, ISBN13: 978-0072558203, Chapters 8, 12 and 14.
    3. Stephen M. Godfrey, Charles A. McAuliffe, Imran Mushtaq, Robin G. Pritchard and Joanne M. Sheffield, J. Chem. Soc., Dalton Trans., 1998, 3815-3818
