- Covalent bonds have certain characteristics that depend on the identities of the atoms participating in the bond. Two characteristics are bond length and bond polarity.
Bond Length
In Section 4.1, we stated that the covalent bond in the hydrogen molecule (H2) has a certain length, about 7.4 × 10−11 meters (m) or 74 picometers (pm). Other covalent bonds also have known bond lengths, which are dependent on both the identities of the atoms in the bond and whether the bonds are single, double, or triple bonds. Table \(\PageIndex{1}\) lists the approximate bond lengths for some single covalent bonds. The exact bond length may vary depending on the identity of the molecule but will be close to the value given in the table.
Bond | Length (pm = 10−12 m) |
---|---|
H–H | 74 |
F-F | 142 |
Cl-Cl | 199 |
Br-Br | 228 |
I-I | 267 |
H–C | 110 |
H–N | 100 |
H–O | 97 |
H–F | 92 |
C–C | 154 |
C–N | 147 |
C–O | 143 |
N–N | 145 |
O–O | 145 |
Table \(\PageIndex{2}\) compares the lengths of single covalent bonds with those of double and triple bonds between the same atoms. Without exception, as the number of covalent bonds between two atoms increases, the bond length decreases. With more electrons between the two nuclei, the nuclei can get closer together before the internuclear repulsion is strong enough to balance the attraction.
Bond | Length (pm = 10−12 m) |
---|---|
C–C | 154 |
C=C | 134 |
C≡C | 120 |
C–N | 147 |
C=N | 128 |
C≡N | 116 |
C–O | 143 |
C=O | 120 |
C≡O | 113 |
N–N | 145 |
N=N | 123 |
N≡N | 110 |
O–O | 145 |
O=O | 121 |
Example \(\PageIndex{1}\)
A. Compare the bond lengths of H-H, F-F, Cl-Cl, Br-Br, and I-I above. Based on what you learned about atomic radius in Chapter 2, what might explain this trend in bond length?
B. Compare the bond lengths of H-C, H-N, H-O, and H-F above. Based on what you learned about atomic radius in Chapter 2, what might explain this trend in bond length?
C. What is the trend you notice for single, double, and triple bonds (between the same atoms)?
SOLUTION
A. The bonds become much larger moving down from H-H (74 pm), F-F (142 pm), Cl-Cl (199 pm), Br-Br (228 pm), and I-I (267 pm) above. Hydrogen is in the first row of the periodic table and thus has only one shell of electrons, giving it the smaller atomic radius. Small atoms can get close together and make short bonds. Moving down the periodic table, the atoms have more shells of electrons and thus larger atomic radius. Larger atoms cannot get as close together and thus make longer bonds.
B. The bonds become slightly shorter moving from H-C (110 pm), H-N (100 pm), H-O (97 pm), and H-F (92 pm). They are all bonded to H, so that is not what makes the difference. Moving across the periodic table C, N, O, and F all have two shells of electrons but the number of protons increases. More protons in the nucleus pull the electrons in closer, leading to smaller radius. Smaller atomic radius leads to shorter bond length.
C. Single bonds tend to be longest and triple bonds shortest [i.e. C-C (154 pm), C=C (134 pm), C≡C (120 pm)]. The atoms must get closer to share more electrons.
Electronegativity and Bond Polarity
Although we defined covalent bonding as electron sharing, the electrons in a covalent bond are not always shared equally by the two bonded atoms. Unless the bond connects two atoms of the same element, there will always be one atom that attracts the electrons in the bond more strongly than the other atom does, as shown in Figure \(\PageIndex{1}\). When such an imbalance occurs, there is a resulting buildup of some negative charge (called a partial negative charge and designated δ−) on one side of the bond and some positive charge (designated δ+) on the other side of the bond. A covalent bond that has an unequal sharing of electrons, as in part (b) of Figure \(\PageIndex{1}\), is called a polar covalent bond. A covalent bond that has an equal sharing of electrons (part (a) of Figure \(\PageIndex{1}\)) is called a nonpolar covalent bond.

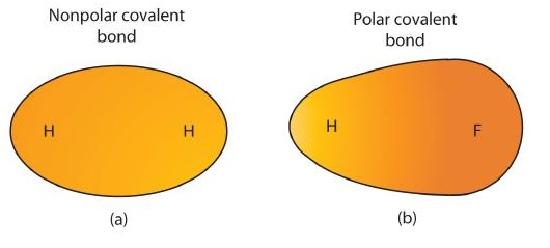

Figure \(\PageIndex{1}\) Polar versus Nonpolar Covalent Bonds. (a) The electrons in the covalent bond are equally shared by both hydrogen atoms. This is a nonpolar covalent bond. (b) The fluorine atom attracts the electrons in the bond more than the hydrogen atom does, leading to an imbalance in the electron distribution. This is a polar covalent bond.
Any covalent bond between atoms of different elements is a polar bond, but the degree of polarity varies widely. Some bonds between different elements are only minimally polar, while others are strongly polar. Ionic bonds can be considered the ultimate in polarity, with electrons being transferred rather than shared. To judge the relative polarity of a covalent bond, chemists use electronegativity, which is a relative measure of how strongly an atom attracts electrons when it forms a covalent bond. There are various numerical scales for rating electronegativity. Figure \(\PageIndex{2}\) shows one of the most popular—the Pauling scale. The polarity of a covalent bond can be judged by determining the difference in the electronegativities of the two atoms making the bond. The greater the difference in electronegativities, the greater the imbalance of electron sharing in the bond. Although there are no hard and fast rules, the general rule is if the difference in electronegativities is less than about 0.4, the bond is considered nonpolar; if the difference is greater than 0.4, the bond is considered polar. If the difference in electronegativities is large enough (generally about 2.0 or greater), the resulting compound is considered ionic rather than covalent. An electronegativity difference of zero, of course, indicates a nonpolar covalent bond.
Figure \(\PageIndex{2}\) Electronegativities of Various Elements. A popular scale for electronegativities has the value for fluorine atoms set at 4.0, the highest value.
Looking Closer: Linus Pauling
Arguably the most influential chemist of the 20th century, Linus Pauling (1901–94) is the only person to have won two individual (that is, unshared) Nobel Prizes. In the 1930s, Pauling used new mathematical theories to enunciate some fundamental principles of the chemical bond. His 1939 book The Nature of the Chemical Bond is one of the most significant books ever published in chemistry.
By 1935, Pauling’s interest turned to biological molecules, and he was awarded the 1954 Nobel Prize in Chemistry for his work on protein structure. (He was very close to discovering the double helix structure of DNA when James Watson and James Crick announced their own discovery of its structure in 1953.) He was later awarded the 1962 Nobel Peace Prize for his efforts to ban the testing of nuclear weapons.
Linus Pauling was one of the most influential chemists of the 20th century.
In his later years, Pauling became convinced that large doses of vitamin C would prevent disease, including the common cold. Most clinical research failed to show a connection, but Pauling continued to take large doses daily. He died in 1994, having spent a lifetime establishing a scientific legacy that few will ever equal.
Example \(\PageIndex{2}\)
Describe the electronegativity difference between each pair of atoms and the resulting polarity (or bond type).
- C and H
- H and H
- Na and Cl
- O and H
SOLUTION
- Carbon has an electronegativity of 2.5, while the value for hydrogen is 2.1. The difference is 0.3, which is rather small. The C–H bond is therefore considered nonpolar.
- Both hydrogen atoms have the same electronegativity value—2.1. The difference is zero, so the bond is nonpolar.
- Sodium’s electronegativity is 0.9, while chlorine’s is 3.0. The difference is 2.1, which is rather high, and so sodium and chlorine form an ionic compound.
- With 2.1 for hydrogen and 3.5 for oxygen, the electronegativity difference is 1.4. We would expect a very polar bond, but not so polar that the O–H bond is considered ionic.
When a molecule’s bonds are polar, the molecule as a whole can display an uneven distribution of charge, depending on how the individual bonds are oriented. For example, the orientation of the two O–H bonds in a water molecule (Figure \(\PageIndex{3}\)) is bent: one end of the molecule has a partial positive charge, and the other end has a partial negative charge. In short, the molecule itself is polar. The polarity of water has an enormous impact on its physical and chemical properties. (For example, the boiling point of water [100°C] is high for such a small molecule and is due to the fact that polar molecules attract each other strongly.) In contrast, while the two C=O bonds in carbon dioxide are polar, they lie directly opposite each other and so cancel each other’s effects. Due to this symmetry, carbon dioxide molecules are nonpolar overall. This lack of polarity influences some of carbon dioxide’s properties. (For example, carbon dioxide becomes a gas at −77°C, almost 200° lower than the temperature at which water boils.)
Figure \(\PageIndex{3}\) Physical Properties and Polarity. The physical properties of water and carbon dioxide are affected by their polarities.
Concept Review Exercises
-
What is the name for the distance between two atoms in a covalent bond?
-
What does the electronegativity of an atom indicate?
-
What type of bond is formed between two atoms if the difference in electronegativities is small? Medium? Large?
Answers
-
bond length
-
Electronegativity is a qualitative measure of how much an atom attracts electrons in a covalent bond.
-
nonpolar; polar; ionic
Key Takeaways
- Covalent bonds between different atoms have different bond lengths.
- Covalent bonds can be polar or nonpolar, depending on the electronegativity difference between the atoms involved.
Exercises
-
Which is longer: a C–H bond or a C–S bond? (Try to answer this using only position on periodic table.)
-
Which is shorter: a C-C bond or a C–F bond? (Try to answer this using only position on periodic table.)
-
A nanometer is 10−9 m. Using the data in Table \(\PageIndex{1}\) and Table \(\PageIndex{2}\), determine the length of each bond in nanometers.
- a C–O bond
- a C=O bond
- an H–N bond
- a C≡N bond
-
Using a periodic table, and not Figure \(\PageIndex{2}\), determine which atom in each pair has the higher electronegativity.
- H or C
- O or Br
- Na or Rb
- I or Cl
-
Will the electrons be shared equally or unequally across each covalent bond? If unequally, to which atom are the electrons more strongly drawn?
- a C–O bond
- an F–F bond
- an S–N bond
- an I–Cl bond
Answers
-
A C–S bond is longer because the atomic radius of sulfur is larger than that of hydrogen.
-
- 0.143 nm
- 0.120 nm
- 0.100 nm
- 0.116 nm
-
- C
- O
- Na
- Cl
-
- unequally toward the O
- equally
- unequally toward the N
- unequally toward the Cl
