Uranium, the heaviest naturally occurring element, is about 500 times more prevalent than gold and about as abundant as tin. However, it is usually found in trace concentrations. The most common mineral containing uranium is pitchblend which is composed of \(UO_2\) in the presence of smaller amounts of \(UO_3\). If the concentration of pitchblend is great enough for it to be extracted economically, the material is known as an ore. Deposits containing more than 0.1% pitchblend are economically viable. Deposits containing more than 20% pitchblend are rare. In 2007, Canada, Australia, and Kazakhstan accounted for over half of the world’s uranium production. The cost of uranium is determined by the concentration of uranium in the ore: the higher the concentration, the lower the cost.
Mining and Preparation of Yellowcake

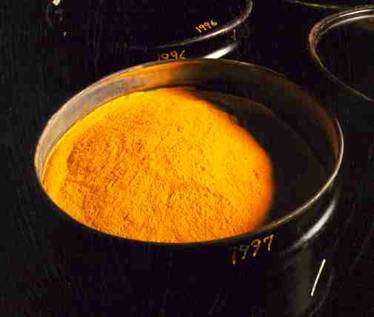

The objective of uranium extraction chemistry is the preparation of \(U_3O_8\), called yellowcake (Figure 1). Extraction of uranium is often difficult, and the metallurgical procedures vary with the geological environment of the ore. Traditional methods of open pit or underground mining are used to extract uranium ore. More recently, in situ leaching has also been used to extract and concentrate the ore. This technique circulates oxygenated groundwater through a porous ore body to dissolve the uranium-containing compounds and bring them to the surface.
The ore is first crushed and ground to liberate mineral particles (Figure 2). An amphoteric oxide is then leached with sulfuric acid.
\[UO_{3\;(s)} + 2H^+_{(aq)} \rightarrow UO^{2+}_{2\; (aq)} + H_2O \nonumber \]
\[UO^{2+}_{2\;(aq)} + 3SO^{2-}_{4\;(aq)} \rightarrow UO_2(SO_4)^{4-}_{3(aq)} \nonumber \]
A basic oxide is converted by a similar process to the water-soluble \(UO_2(CO_3)^{4-}_{3\;(aq)}\) ion.
Figure 2: Preparation of . YellowcakePreparation of yellow cake, purified U3O8(s) (Courtesy of the Uranium Information Center)
Two methods are used to concentrate and purify the uranium: ion exchange and solvent extraction. Solvent extraction, the more common method, uses tertiary amines in an organic kerosene solvent in a continuous process.
First the amines, \(R_3N\), react with sulfuric acid:
\[2 R_3N_{(org)} + H_2SO_{4(aq)} \rightarrow (R_3NH)_2SO_{4(org)} \nonumber \]
Then the amine sulfate extracts the uranyl ions into the organic phase while the impurities remain in the aqueous phase. In the case of the uranyl sulfate ion, the following reaction occurs
\[(R_3NH)_2SO_{4(org)} + UO_2(SO_4)^{4-}_{3(aq)} \rightarrow (R_3NH)_4UO_2(SO_4)_{3(org)} + 2SO^{2-}_{4(aq)} \nonumber \]
The solvents are removed by evaporation in a vacuum, and ammonium diuranate, (NH4)2U2O7, is precipitated by adding ammonia to neutralize the solution. The diuranate is then heated to yield solid U3O8.
Refining and converting \(U_3O_8\) to \(UF_6\)
At the refinery, the yellowcake is dissolved in nitric acid. The resulting solution of uranium nitrate, \(UO_2(NO_3)_2 \cdot 6H_2O\), is fed into a continuous solvent extraction process. The uranium is extracted into an organic phase (kerosene) with tributyl phosphate, and the impurities remain again in the aqueous phase. After this purification, the uranium is washed out of the kerosene with dilute nitric acid and concentrated by evaporation to pure \(UO_2(NO_3)_2 \cdot 6H_2O\). Heating yields pure \(UO_3\). The initial separation and refining processes generate large volumes of acid and organic waste.
It is necessary to enrich the U-235 isotope concentration from its natural composition of 0.7% for use as reactor fuel or weapons components. Reactor grade uranium contains from 0.8 to 8.0% U-235, while weapons grade uranium contains more than 90% of the lighter U-235 isotope.
Because the uranium isotopes have identical chemical properties, the processes employed for enrichment must use physical techniques which take advantage of the slight differences in their masses. The two enrichment methods used today, centrifugation and diffusion, require that the uranium be in a gaseous form, uranium hexafluoride, \(UF_{6\;(g)}\). Although enrichment involves physical processes, chemistry plays an important role in synthesizing UF6 gas and returning the \(UF_6\) enriched in U-235 to a solid, \(UO_2\).
Conversion to the hexafluoride involves the following sequence of reactions:
- The \(UO_3\) is reduced with hydrogen in a kiln:
\[UO_{3(s)} + H_{2(g)} \rightarrow UO_{2(s)} + H_2O_{(g)} \nonumber \]
- The uranium dioxide is then reacted with hydrogen fluoride to form uranium tetrafluoride:
\[UO_{2(s)} + 4HF_{(g)} \rightarrow UF_{4(s)} + 4H_2O_{(g)} \nonumber \]
- The tetrafluoride is then fed into a fluidized bed reactor and reacted with gaseous fluorine to obtain the hexafluoride:
\[UF_{4(s)} + F_{2(g)} \rightarrow UF_{6(g)} \nonumber \]
- Uranium hexafluoride is now suitable feedstock for the gaseous diffusion or centrifugation enrichment processes.
Production of uranium metal
Production of solid fuel rods from uranium hexafluoride gas enriched in U-235 requires another series of chemical and metallurgical processes (Figure 3).
The uranium hexafluoride is first reduced to uranium tetrafluoride with hydrogen.
\[UF_{6(g)} + H_{2(g)} \rightarrow UF_{4(s)} + 2HF_{(g)} \nonumber \]
Uranium metal is then produced by reducing the uranium tetrafluoride with either calcium or magnesium, both active group IIA metals that are excellent reducing agents.
\[UF_{4(s)} + 2Ca_{(s) } \rightarrow U_{(s)} + 2CaF_{2(s)} \nonumber \]
Production of uranium dioxide, often used as a reactor fuel, from uranium hexafluoride can be accomplished by the following reaction.
\[UF_{6(g)} + 2H_2O_{(g)} + H_{2(g)} \rightarrow UO_{2(s)} + 6HF_{(g)} \nonumber \]
Reactor fuel consists of ceramic pellets formed from pressed uranium oxide, which is sintered (baked) at a high temperature (over 1400°C). The pellets are then placed in metal tubes made of a zirconium alloy or stainless steel and sealed in an atmosphere of helium to form fuel rods. The fuel rods are then grouped in clusters to form the fuel assemblies, which are placed into the reactor core (Figure 4).
The individual rods for a pressurized water reactor (PWR) are about 1 inch in diameter and 4 meters in length. Fuel assemblies for PWRs contain from 179 to 264 rods, and a fully fueled PRW will contain from 121 to 193 assemblies. A PWR must be shut down for refueling. This occurs at intervals of 1 to 2 years, when about a third of the fuel assemblies are replaced. The spent fuel assemblies are removed to cooling pools at the reactor site.
