Tertiary alcohols react with either HCl or HBr at 0 °C by an SN1 mechanism through a carbocation intermediate. Primary and secondary alcohols are much more resistant to acid, however, and are best converted into halides by treatment with either SOCl2 or PBr3 through an SN2 mechanism.
The reaction of a tertiary alcohol with HX takes place by an SN1 mechanism when acid protonates the hydroxyl oxygen atom. Water is expelled to generate a carbocation, and the cation reacts with nucleophilic halide ion to give the alkyl halide product.

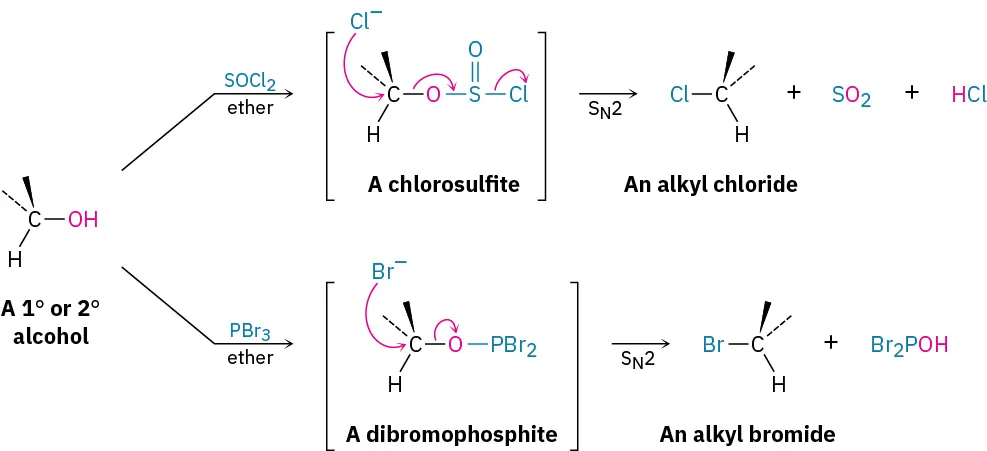

The reactions of primary and secondary alcohols with SOCl2 and PBr3 take place by SN2 mechanisms. Hydroxide ion itself is too poor a leaving group to be displaced by nucleophiles in SN2 reactions, but reaction of an alcohol with SOCl2 or PBr3 converts the –OH into a much better leaving group, either a chlorosulfite (–OSOCl) or a dibromophosphite (–OPBr2), which is readily expelled by backside nucleophilic substitution.
Conversion of Alcohols into Tosylates
Alcohols react with p-toluenesulfonyl chloride (tosyl chloride, p-TosCl) in pyridine solution to yield alkyl tosylates, ROTos (Section 11.1). Only the O–H bond of the alcohol is broken in this reaction; the C–O bond remains intact, so no change of configuration occurs if the oxygen is attached to a chirality center. The resultant alkyl tosylates behave much like alkyl halides, undergoing both SN1 and SN2 substitution reactions.
One of the most important reasons for using tosylates in SN2 reactions is stereochemical. The SN2 reaction of an alcohol with an alkyl halide proceeds with two inversions of configuration—one to make the halide from the alcohol and one to substitute the halide—and yields a product with the same stereochemistry as the starting alcohol. The SN2 reaction of an alcohol with a tosylate, however, proceeds with only one inversion and yields a product of opposite stereochemistry to the starting alcohol. Figure 17.6 shows a series of reactions on the R enantiomer of 2-octanol that illustrates these stereochemical relationships.
Dehydration of Alcohols to Yield Alkenes

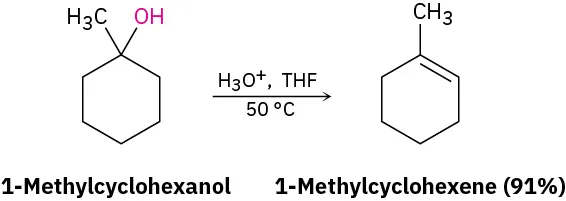

A third important reaction of alcohols, both in the laboratory and in biological pathways, is their dehydration to give alkenes. Because of the usefulness of the reaction, a number of methods have been devised for carrying out dehydrations. One method that works particularly well for tertiary alcohols is the acid-catalyzed reaction discussed in Section 8.1. For example, treatment of 1-methylcyclohexanol with warm, aqueous sulfuric acid in a solvent such as tetrahydrofuran results in loss of water and formation of 1-methylcyclohexene.

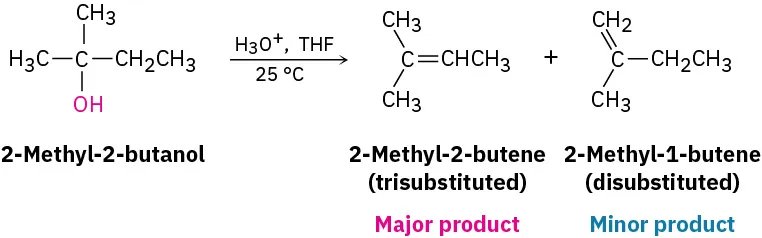

Acid-catalyzed dehydrations usually follow Zaitsev’s rule and yield the more stable alkene as the major product. Thus, 2-methyl-2-butanol gives primarily 2-methyl-2-butene (trisubstituted double bond) rather than 2-methyl-1-butene (disubstituted double bond).
This reaction is an E1 process and occurs by the three-step mechanism shown in Figure 17.7 on the next page. Protonation of the alcohol oxygen is followed by unimolecular loss of water to generate a carbocation intermediate and final loss of a proton from the neighboring carbon atom to complete the process. As with most E1 reactions, tertiary alcohols react fastest because they lead to stabilized, tertiary carbocation intermediates. Secondary alcohols can be made to react, but the conditions are severe (75% H2SO4, 100 °C) and sensitive molecules don’t survive.
Figure 17.7 MECHANISM Mechanism for the acid-catalyzed dehydration of a tertiary alcohol to yield an alkene. The process is an E1 reaction and involves a carbocation intermediate.
To circumvent the need for strong acid and allow the dehydration of secondary alcohols in a gentler way, reagents have been developed that are effective under mild, basic conditions. One such reagent, phosphorus oxychloride (POCl3) in the basic amine solvent pyridine, is often able to effect the dehydration of secondary and tertiary alcohols at 0 °C.
Alcohol dehydrations carried out with POCl3 in pyridine take place by an E2 mechanism, as shown in Figure 17.8. Because hydroxide ion is a poor leaving group (Section 11.3), direct E2 elimination of water from an alcohol does not occur. On reaction with POCl3, however, the –OH group is converted into a dichlorophosphate (–OPOCl2), which is a good leaving group and is readily eliminated. Pyridine is both the reaction solvent and the base that removes a neighboring proton in the E2 elimination step.
Figure 17.8 MECHANISM Mechanism for the dehydration of secondary and tertiary alcohols by reaction with POCl3 in pyridine. The reaction is an E2 process.
As noted previously, biological dehydrations are also common and usually occur by an E1cB mechanism on a substrate in which the –OH group is two carbons away from a carbonyl group. One example occurs in the biosynthesis of the aromatic amino acid tyrosine. A base (:B) first abstracts a proton from the carbon adjacent to the carbonyl group, and the anion intermediate then expels the –OH group with simultaneous protonation by an acid (HA) to form water.
