- Describe properties of tension force.
A tension is a force along the length of a medium, especially a force carried by a flexible medium, such as a rope or cable. The word “tension” comes from a Latin word meaning “to stretch.” Not coincidentally, the flexible cords that carry muscle forces to other parts of the body are called tendons. Any flexible connector, such as a string, rope, chain, wire, or cable, can exert pulls only parallel to its length; thus, a force carried by a flexible connector is a tension with direction parallel to the connector. It is important to understand that tension is a pull in a connector. In contrast, consider the phrase: “You can’t push a rope.” The tension force pulls outward along the two ends of a rope.

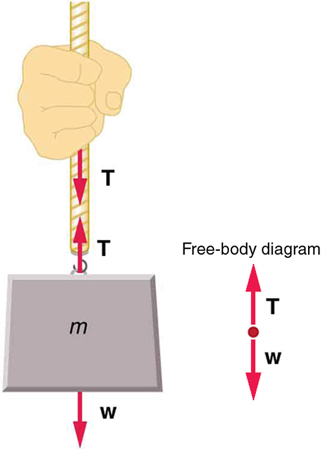

Consider a person holding a mass on a rope as shown in Figure \(\PageIndex{2}\).
![A hand holding a rope connected to a weight. The force of the weight equals the tension force the weight exerts on the rope, which equals the tension force the rope exerts on the hand.](https://chem.libretexts.org/@api/deki/files/468786/Figure_04_05_04.jpg?revision=1&size=bestfit&width=200&height=278)
Tension in the rope must equal the weight of the supported mass, as we can prove using Newton’s second law. If the 5.00-kg mass in the figure is stationary, then its acceleration is zero, and thus \(\boldsymbol{F}_{\text {net }}=0\). The only external forces acting on the mass are its weight \(w\) and the tension T supplied by the rope. Thus,
\[F_{\text {net }}=T-w=0, \nonumber \]
where T and \(w\) are the magnitudes of the tension and weight and their signs indicate direction, with up being positive here. Thus, just as you would expect, the tension equals the weight of the supported mass:
\[T=w=m g. \nonumber \]
For a 5.00-kg mass, then (neglecting the mass of the rope) we see that
\[T=m g=(5.00 \mathrm{~kg})\left(9.80 \mathrm{~m} / \mathrm{s}^{2}\right)=49.0 \mathrm{~N}. \nonumber\]
If we cut the rope and insert a spring, the spring would extend a length corresponding to a force of 49.0 N, providing a direct observation and measure of the tension force in the rope.
Flexible connectors are often used to transmit forces around corners, such as in a hospital traction system, a finger joint, or a bicycle brake cable. If there is no friction, the tension is transmitted undiminished. Only its direction changes, and it is always parallel to the flexible connector. This is illustrated in Figure \(\PageIndex{3}\) (a) and (b).
![pictures of tendons in an arm and the forces in a bicycle as described in the caption](https://chem.libretexts.org/@api/deki/files/468789/Figure_04_05_05.jpg?revision=1&size=bestfit&width=265&height=325)
![golden gate bridge](https://chem.libretexts.org/@api/deki/files/468790/Figure_04_05_09.jpg?revision=1&size=bestfit&width=325&height=243)
Normal force and tension are examples of forces that are determined not by a specific formula but by enforcing a constraint on motion state of a body. In the example of the bag on a table above, the normal force is equal to weight, because that is the value needed to ensure that the acceleration of the bag is zero. What happens if the body experiences a non-zero acceleration? We will consider example below of a person standing on a scale (which measures his apparent weight) while riding in an elevator.
Example \(\PageIndex{1}\): What Does the Bathroom Scale Read in an Elevator?
Figure \(\PageIndex{5}\) shows a 75.0-kg man (weight of about 165 lb.) standing on a bathroom scale in an elevator. Calculate the scale reading: (a) if the elevator accelerates upward at a rate of \(1.20 \mathrm{~m} / \mathrm{s}^{2}\), and (b) if the elevator moves upward at a constant speed of 1 m/s.
![2 pictures of a person on a scale. The first shows all the internal forces as described in the caption. The second shows only the external forces.](https://chem.libretexts.org/@api/deki/files/468788/CNX_UPhysics_06_01_Scale.jpg?revision=1&size=bestfit&width=810&height=689)
Strategy
If the scale at rest is accurate, its reading equals \(\overrightarrow{\mathbf{F}}_{\mathrm{p}}\), the magnitude of the force the person exerts downward on it. Figure
\[\overrightarrow{\mathbf{F}}_{\text {net }}=m \overrightarrow{\mathbf{a}}. \nonumber\]
From the free-body diagram, we see that the net force \(\overrightarrow{\mathbf{F}}_{\text {net }}\) is sum of the scale force \(\overrightarrow{\mathbf{F}}_{\mathrm{s}}\) and the weight \(\overrightarrow{\mathbf{w}}\). Since the scale force and the weight are pointing in opposite directions, in terms of the magnitudes of the vectors,
\[F_{\text {net }}=F_{s}-w=m a. \nonumber\]
Solving for Fs gives us an equation with only one unknown:
\[F_{\mathrm{s}}=m a+w, \nonumber\]
or, because \(w=m g\), simply
\[F_{\mathrm{s}}=m a+m g. \nonumber\]
No assumptions were made about the acceleration, so this solution should be valid for a variety of accelerations in addition to those in this situation. (Note: We are considering the case when the elevator is accelerating upward. If the elevator is accelerating downward, Newton’s second law becomes \(F_{s}-w=-m a \).)
Solution
- We have \(a=1.20 \mathrm{~m} / \mathrm{s}^{2}\), so that
\[F_{\mathrm{s}}=(75.0 \mathrm{~kg})\left(9.80 \mathrm{~m} / \mathrm{s}^{2}\right)+(75.0 \mathrm{~kg})\left(1.20 \mathrm{~m} / \mathrm{s}^{2}\right) \nonumber\]
yielding\[F_{\mathrm{s}}=825 \mathrm{~N}. \nonumber\]
- Now, what happens when the elevator reaches a constant upward velocity? Will the scale still read more than his weight? For any constant velocity—up, down, or stationary—acceleration is zero because \(a=\frac{\Delta v}{\Delta t}\) and \(\Delta v=0\). Thus,
\[F_{\mathrm{s}}=m a+m g=0+m g \nonumber\]
or\[F_{\mathrm{s}}=(75.0 \mathrm{~kg})\left(9.80 \mathrm{~m} / \mathrm{s}^{2}\right), \nonumber\]
which gives\[F_{\mathrm{s}}=735 \mathrm{~N}. \nonumber\]
Significance
The scale reading in Figure \(\PageIndex{5}\)(a) is about 185 lb. What would the scale have read if he were stationary? Since his acceleration would be zero, the force of the scale would be equal to his weight:
\[\begin{gathered}
F_{\text {net }}=m a=0=F_{\mathrm{s}}-w \\
F_{\mathrm{s}}=w=m g \\
F_{\mathrm{s}}=(75.0 \mathrm{~kg})\left(9.80 \mathrm{~m} / \mathrm{s}^{2}\right)=735 \mathrm{~N}.
\end{gathered} \nonumber\]
Thus, the scale reading in the elevator is greater than his 735-N (165-lb.) weight. This means that the scale is pushing up on the person with a force greater than his weight, as it must in order to accelerate him upward. Clearly, the greater the acceleration of the elevator, the greater the scale reading, consistent with what you feel in rapidly accelerating versus slowly accelerating elevators. In Figure \(\PageIndex{5}\)(b), the scale reading is 735 N, which equals the person’s weight. This is the case whenever the elevator has a constant velocity—moving up, moving down, or stationary.
Section Summary
- The pulling force that acts along a stretched flexible connector, such as a rope or cable, is called tension, T. When a rope supports the weight of an object that is at rest, the tension in the rope is equal to the weight of the object.
Glossary
Contributors
Curated from resources found in Introduction to Physics published by OpenStax.
- tension
- the pulling force that acts along a medium, especially a stretched flexible connector, such as a rope or cable; when a rope supports the weight of an object, the force on the object due to the rope is called a tension force
