    Redox Chemistry of Free Molecular Dioxygen

    Dioxygen has a rich redox chemistry that is not explicitly exploited in the oxygen carriers, but which is central to enzymes that coordinate and activate dioxygen for subsequent reaction with a substrate. On reduction of dioxygen by one electron, the superoxide anion radical O2-• is formed. Concomitant with a reduction in bond order from 2.0 to 1.5 is an increase in bond length from 1.21 to 1. 30 Å. A second reduction step produces the peroxide anion 022 -; the bond order is one, and the O—O separation is 1.49 Å. Each of these reduced species, O2-• and O22-, has a characteristic O—O stretching vibration in the infrared region. The free-energy changes and electrochemical potentials for the reduction of dioxygen at unit activity, pH = 1 (E°), are different from those at pH 7.0 (E°'), as shown in Figure 4.11.58,62 The values at pH 7.0 are more relevant to physiological conditions. Note that the superoxide anion may function as either an oxidant or a reductant.

    clipboard_eed91d8984047fb1f6c805b939f0930e8
    Figure 4.11 - Free-energy changes in the aqueous redox chemistry of dioxygen. Standard state P(O2) = 1. Electrode potentials are at pH 7; those in parentheses are at unit activity.

    Geometry and Electronic Structure of Coordinated Dioxygen

    In coordinating to metals, dioxygen shows a great variety of geometries and two formal oxidation states. Many complexes have v(O—O) values in the range 740 to 930 cm-1, and, where known, an O—O separation in the range 1.40 to 1.50 Å. By analogy with the peroxide anion, these species are designated peroxo, O2II-. Similarly, the designation superoxo O2I- is applied to those complexes where v(O—O) values are in the range 1075 to 1200 cm-1, and the O—O separation is around 1.30 Å.63 Although such O—O separations and vibrations are consistent with coordinated peroxide or superoxide moieties, the net amount of charge transferred onto the dioxygen ligand from the metal and its other ligands is difficult to measure experimentally and is probably variable. Thus the oxidation state of the dioxygen ligand and that of the metal are best considered in a formal sense rather than literally—hence the use of the terminology O2I- to indicate oxidation state I- for the O2 moiety as a unit (not each O atom). Because of the high degree of covalency in the M—O bond, a more sensible comparison, at least for the peroxo class of compounds, is with organic peroxides, ROOH or ROOR. The clear separation of coordinated dioxygen into either the superoxo or the peroxo class is shown in Figure 4.12.63-66 Only those compounds for which both stretching frequencies (v(O—O)) and O—O separations (r(O—O)) are available are shown; for the purpose of the plot, non-coordinated anions and cations, replacement of ethylenendiamine by two ammonia ligands, and replacement of triphenylphosphine by alkylphenylphosphines are assumed not to perturb significantly v(O—O) or r(O—O).

    clipboard_e7bc32bb2964243213db200af494449b9

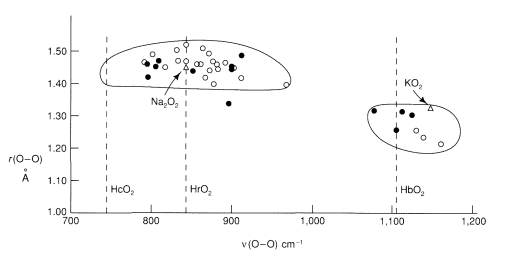

    Figure 4.12 - Scatter diagram showing the distribution of O—O stretching frequencies and separations in ionic superoxides and peroxides (\(\bigtriangleup\)) and in coordination compounds. An open circle denotes O2 coordinated to one metal; a filled circle denotes O2 bridging two metals. The O—O stretching frequencies of oxyhemoglobin, oxyhemocyanin, and oxyhemerythrin are marked by dashed lines.

    At least seven different geometries have been observed for the coordination of dioxygen (Figure 4.13),63-66 only three or four of which are currently known to be biologically relevant—the superoxo clipboard_ef02cc38133692e502322e8c477fe749a(for oxyhemoglobin), the peroxo clipboard_e976b6aef15c16006f28a3c62ef487348orclipboard_e20b79a947c50bb96401668546e527980(for oxyhemocyanin), and the hydroperoxo clipboard_ea06dc24ff125cfa2e6fa7d318fe087c6(for oxyhemerythrin).

    clipboard_e0b4c0a54c744c5cc3948d336fbddcb43
    Figure 4.13 - Modes of attachment of O2 to metals. P, N, and O denote phosphine, amine, and oxygen ligands, respectively.

    The geometry is a function of the metal, its oxidation state, and its ligands. For the late transition metals of the cobalt and nickel triads, with soft \(\pi\)-acid ligands, such as phosphines and carbonyls, and with an initially low oxidation state of the metal, triangular coordination of a peroxo species with covalent M-O2 bonds is common.63 Concomitant with the formal reduction of dioxygen, the metal center undergoes a formal two-electron oxidation:

    clipboard_e4e401d3fe94866a109c8eb16d52f799a\(\tag{4.26}\)

    In this example, where the metal has undergone, at least formally, a two-electron oxidation, the UV-visible properties of the metal-dioxygen complex tend to resemble those of bona fide Mn+II rather than Mn species.

    Early transition metals (Ti, V, Cr triads) often coordinate several peroxo species, leaving the metal in formally a very high oxidation state (e.g., Cr(O2)43-, a CrV ion).63 The M—O2 links have more ionic character, with the \(\eta\)-peroxo groups acting as bidentate ligands. Titanium and molybdenum(II) porphyrins bind, respectively, one and two dioxygen molecules in this manner.65

    With harder \(\sigma\)-donor ligand systems, such as those containing nitrogen and oxygen donors, and the metal center in a normal oxidation state, a formal one-electron reduction to an end-on coordinated superoxo species occurs with a bent clipboard_e16d64a21a4429213ba90d0470bd1cc4fbond. Metal-dioxygen species can also be formed by adding the superoxide anion to the oxidized species:64

    clipboard_e5911263b7d3b60fa53b441299cc7d90a\(\tag{4.27}\)

    In the absence of steric constraints, dimerization to a (bridging) \(\mu\)-peroxo species frequently occurs, especially for cobalt-dioxygen complexes:

    clipboard_e30c86f7cd6047ae64128143802b841f0\(\tag{4.28}\)
    Figure 4.12 is one such example.

    These dicobalt species (right-hand side of Equation 4.28) may be oxidized by one electron to give a \(\mu\)-superoxo moiety. A clear shortening of the O—O bond and concomitant increase in the value of v(O—O) are observed in several superoxo-peroxo pairs. These and other modes of O2 attachment are illustrated in Figure 4.13. Some geometries are represented by only one or two examples, and some geometries, for example, a linear M—O—O species, have never been observed.

    In binding to metals, O2 effectively functions both as a \(\pi\) acid, accepting into its \(\pi\)* orbitals electron density from the filled d orbitals of the metal, and as a \(\sigma\) donor, donating electron density into an empty metal d orbital. Thus other \(\sigma\) donor or \(\pi\) acceptor ligands, such as nitric oxide (NO), alkyl isocyanides (R—NC), alkyl nitroso (R—NO), and carbon monoxide (CO), are often observed to bind to the same metal complexes that bind O2. The nature of the metal-dioxygen linkage in biological oxygen carriers and their models will be examined in more detail later.
