\[U(r)=\dfrac{q_{A} q_{B}}{4 \pi} \dfrac{1}{\varepsilon r}\nonumber\]
You can think of \(\varepsilon\) as scaling the potential interaction distance \(U \propto (\varepsilon r)^{-1}\). Here we equate the dielectric constant and the relative permittivity \(\varepsilon_r = \varepsilon / \varepsilon_0\), which is a unitless quantity equal to the ratio of the sample permittivity \(\varepsilon\) to the vacuum permittivity \(\varepsilon_0\).
The dielectric constant is used to treat the molecular structure and dynamics of the charge environment in a mean sense, to give you a sense of how the polarizable medium screens the interaction of charges. Making use of a dielectric constant implies a separation of the charges of the system into a few important charges and the environment, which encompassed countless countess charges and their associated degrees of freedom.
Two treatments of the electrostatic force that charge b exerts on charge a in a dense medium:
Continuum
\[f_{A}=\dfrac{1}{4 \pi \varepsilon_{0}} \dfrac{q_{a} q_{b}}{\varepsilon_{r} r^{2}}\nonumber\]

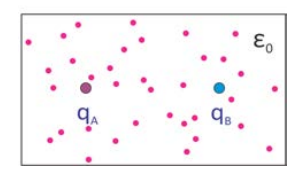

Explicit Charges
\[
\begin{aligned}
f_{A} &=\frac{1}{4 \pi \varepsilon_{0}}\left[\frac{q_{a} q_{b}}{r^{2}}+\sum_{i=1}^{N} \frac{q_{a} q_{i}}{r_{a i}^{2}}\right] \\
&=\frac{1}{4 \pi \varepsilon_{0}} \frac{q_{a} q_{b}}{r^{2}}\left[1+\sum_{i=1}^{N} \frac{q_{i}}{q_{b}} \frac{r^{2}}{r_{a i}^{2}}\right]
\end{aligned}
\nonumber\]
\(i\): charged particles of the environment
