5.21: Solutions to Selected Problems

Problem SC2.1.

Problem SC2.2.

Problem SC3.1.

Clockwise.

Problem SC3.2.

Counter-clockwise.

Problem SC3.3.

Counter-clockwise.

Problem SC3.4.

Clockwise.

Problem SC3.5.

Enantiomer B has a molecular weight of 126 g/mol, a density of 0.995 g/mL, an optical rotation of [α] = – 26°, a melting point of 65°C and a boiling point of 225°C.

Problem SC3.6.

Problem SC3.7.

A. The plane of the page is a mirror plane. There is also one perpendicular to the page that reflects one H into the other.
B. The plane of the page contains one P-Cl bond and bisects the other Cl’s.
C. The plane of the page is a mirror plane.
D. Mirror plane contains P-Br bond and bisects the Cl’s.
E. There is no lone pair on the B. Therefore all atoms lie in a mirror plane.
F. No mirror planes--the molecule is therefore chiral.
G. There is a plane perpendicular to the page that contains the Br and Cl and bisects the cyclopropane ring.
H. No mirror planes--the molecule is therefore chiral.
I. There is a plane perpendicular to the page that contains the Br and Cl and bisects the cyclopropane ring.
J. The C-C bond can be rotated by 60 degrees so that there is a plane perpendicular to the C-C bond axis.
K. The C-C bond in one of the chlorine-containing arms can be rotated so that there is a mirror plane that goes through the ethyl group (with no Cl’s) and the P, and one chlorine containing arm is the reflection of the other.
L. Since a double bond is planar, there is a mirror plane that contains all six atoms.
M. There is a mirror plane that contains two C’s and bisects the two Cls.
N. No mirror planes--the molecule is therefore chiral. The rings are not in the same plane due to the CH3 and NH2 groups, which bump into each other. They also prevent rotation around the C-C bond between the rings.

Problem SC3.8.

Picture (a)

Problem SC3.9.

Picture (b)

Problem SC3.10.

Picture (d)

Problem SC3.11.

Picture (c)

Problem SC4.1.

Priority of groups:
1 Br (red)
2 Cl (bright green)
3 F (pale green)
4 H (white)

In the molecule in figure SC4.2, with the low-priority hydrogen pointed away, bromine is at the top, chlorine is clockwise from the bromine, and fluorine is clockwise from the chlorine. It therefore has an assigned configuration of R.

In the molecule in figure SC4.3, with the low-priority hydrogen pointed away, bromine is at the top, chlorine is counterclockwise from the bromine, and fluorine is counterclockwise from the chlorine. Thus, it has an assigned configuration of S.

Problem SC4.2.

Problem SC4.3.

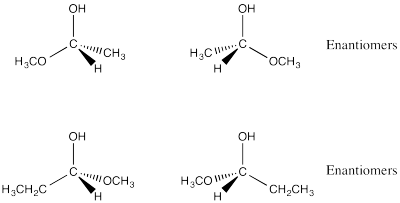

Problem SC4.4.

Problem SC5.1.

Problem SC5.2.

Problem SC5.3.

Problem SC6.1.

A pure sample of A would have [α]=75°

Optical purity or enatiomeric excess = 50/75 = 66%

% major enantiomer = 66 + 34/2 = 83%

% minor enantiomer = 100 – 83 = 17%

Problem SC6.2.

% major = 90%

% minor = 10%

Optical purity or enantiomeric excess = X/-50 = 90-10 = 80%

Solve for X. X = -40°

Problem SC6.4

Problem SC7.1.

a)

[α] = α/(c)(l)

c = (0.250g/ 2 mL)(10 mL/1 dL) = 1.25g/dL

α = (0.775° + 0.806° + 0.682°)/3 = 0.754°

[α] = α/(c)(l) = (0.754°)/(1.25g/dL)(0.5dm) = + 1.21°

b)

– 1.21°

Problem SC7.2.

[α] = α/(c)(l)

[α] = 32°

c = (0.150g/ 1 mL)(10 mL/1 dL) = 1.5g/dL

[α] = α/(c)(l) = 32° = α /(1.5g/dL)(0.5dm)

Solve for α. α = +24°

Problem SC8.1.

D-glyceraldehyde is R

L-glyceraldehyde is S

Problem SC8.2.

Problem SC8.3.

Problem SC9.1.

a) left b) right

Problem SC9.2.

a) right b) left

Problem SC9.1.

a) right b) right

Problem SC9.2.

a) left b) left

Problem SC9.5.

D-threose
2S, 3R

Problem SC9.6.

L-threose
2R, 3S
D- and L-threose are enantiomers of one another

Problem SC9.7.

L-erythrose
2S, 3S
L-erythrose and L-threose are diastereomers of one another.

Problem SC9.8.

a) (2)³ = 8 possible stereoisomers

RRR; SSS; RRS; SSR; RSS; SRR; SRS; RSR

b) 4 pairs

c) 12 different possible pairs of diastereomers

Problem SC9.9.

Problem SC9.10.

Problem SC10.1.

a) D-threitol → 2R, 3S

b) L- threitol → 2S, 3S

c) erythritol → 2S, 3R or 2R, 3S (a meso compound)

Problem SC10.2.

It does not matter which end you start counting from on these compounds since they are constituted the same.

Problem SC10.3.

Problem SC10.4.

Problem SC11.1.

Problem SC11.2.

Problem SC12.1.

Glycine

Problem SC12.2.

Problem SC12.3.

Proline

Problem SC12.4.

Glutamic acid and aspartic acid

Problem SC12.5.

​​​​​​​Arginine, asparagine, glutamine, lysine; also tryptophan contains an aromatic heterocycle, although it is not basic.

Problem SC12.6.

Problem SC12.7.

Cysteine​​​​​​​

Problem SC13.1.

Problem SC13.2.

Problem SC14.1.

ProblemSC15.1.

A. Cis
B. Trans
C. Trans
D. Neither (There is free rotation around the C-C single bond.)
E. Neither (C-C triple bonds have substituents at 180 degrees to each other (linear).
F. cis​​​​​​​

Problem SC16.1.

A. Z
B. E
C. E
D. Z
E. E
F. E
G. Z
H. E

ProblemSC17.1.

ProblemSC17.2.

Problem SC18.1.

a) Enantiomers

b) Enantiomers

c) Identical

d) Identical

e) Enantiomers

f) Identical

g) Enantiomers

Problem SC18.2.

a) Δ b) Λ c) Δ d) Λ e) Δ f) Δ g) Λ h) Λ

Problem SC20.1.

Pure = 125°

Optical purity = 100/125 = 0.80

% Major = 80 + 20/2 = 90%

% Minor = 100 – 90 = 10 %

Problem SC20.2.

Pure = 100°

Optical purity = 95/100 = 0.95

% Major = 95 + 5/2 = 97.5%

% Minor = 100 – 97.5 = 2.5 %

Problem SC20.3.

Pure = 18°

% Major = 60%

% Minor = 40 %

Optical purity = X/18 = 20%

Solve for X:

X = 3.6°

Problem SC20.4.

Pure = 25°

% Major = 80%

% Minor = 20 %

Optical purity = X/25 = 80 – 20 = 60%

Solve for X:

X = 15°

Problem SC20.5.

[α] = observed rotation/ (l)(c)

c = 0.050 g/ 2.0 mL = 0.025 g/mL

Average observed rotation = (0.625 + 0.706 + 0.682)/3 = 0.671°

[α] = 0.671° / (0.025 g/mL)(0.5 dm) = 53.68°

Problem SC20.6.

[α] = observed rotation/ (l)(c)

c = 0.540 g/ 2.0 mL = 0.27 g/mL

Average observed rotation = (1.225 + 1.106 + 1.182)/3 = 1.171O

[α] = 1.171° / (0.27 g/mL)(1.0 dm) = 4.34°

Problem SC20.7.

[α] = observed rotation/ (l)(c)

c = 0.250 g/ 2.0 mL = 0.125 g/mL

42° = observed rotation / (0.125 g/mL)(0.5 dm)

observed rotation = 2.625°

Problem SC20.8.

a) [α] = observed rotation/ (l)(c)

c = 0.10 g/ 2.0 mL = 0.05 g/mL

Average observed rotation = (0.995 + 0.904 + 0.936)/3 = 0.945°

[α] = 0.945° / (0.05 g/mL)(1.0 dm) = 18.9°

b) % optical purity = (100)(18.9)/25 = 75.6%

c) enantiomeric excess = 75.6%

d) (100 – 75.6)/2 = 12.2 %

12.2 % one enantiomer
87.8% other enantiomer

e) Enantiomers differ in how they interact with plane polarized light, but not in other physical analyses.

Problem SC20.9.

[α] = observed rotation/ (l)(c)

40° = observed rotation / (l)(c)

40° = observed rotation / (l)(1.1 c)

Observed rotation = 44°

Problem SC20.10.

Problem SC20.11.

Problem SC20.12.
