    All Analgesics, 55% pH=7 0.025M phosphate buffer

    C18, Black Trace 245 nm, Green Trace 195nm

    RP-Amide, Black Trace 245 nm, Green Trace 195nm

    C18-PFP, Black Trace 245 nm, Green Trace 200nm

    RP-Amide, 55% pH=5 0.025M phosphate buffer

    Mix A (order: aspirin and caffeine, salicyclamide, phenacetin),  Black Trace 245 nm, Green Trace 220nm

    Acetaminophen, Black Trace 245 nm, Green Trace 195nm

    Ibuprofen, Black Trace 245 nm, Green Trace 195nm

    Diphenhydramine, Black Trace 245 nm, Green Trace 195nm

    All Analgesics, 195nm

    RP-Amide, 55% pH=7 0.025M phosphate buffer

    Mix A, Black Trace 245 nm, Green Trace 220nm: aspirin, caffeine, salicyclamide, and phenacetin, respectively

    Acetaminophen, Black Trace 245 nm, Green Trace 195nm

    Ibuprofen, Black Trace 245 nm, Green Trace 195nm

    Diphenhydramine, Black Trace 245 nm, Green Trace 195nm

    All Analgesics, Black Trace 245 nm, Green Trace 195nm

    RP-Amide, 55% pH=9 0.025M phosphate buffer

    Mix A (order aspirin, caffeine and salicyclamide, phenacetin) Black Trace 245 nm, Green Trace 230nm

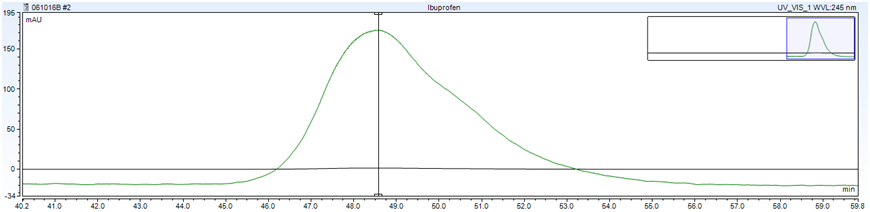

    Ibuprofen, Black Trace 245 nm, Green Trace 195nm

    Diphenhydramine, Black Trace 245 nm, Green Trace 195nm

    All Analgesics, Black Trace 245 nm, Green Trace 200nm

    C18-PFP, 55% pH=5 0.025M phosphate buffer

    Mix A (aspirin, caffeine, salicyclamide, phenacetin) Black Trace 245 nm, Green Trace 213nm

    Acetaminophen, Black Trace 245 nm, Green Trace 195nm

    Ibuprofen, Black Trace 245 nm, Green Trace 195nm

    Diphenhydramine, Black Trace 245 nm, Green Trace 195nm

    All Analgesics, Black Trace 245 nm, Green Trace 195nm

    C18-PFP, 55% pH=7 0.025M phosphate buffer

    Mix A (order aspirin, caffeine, salicyclamide, phenacetin), Black Trace 245 nm, Green Trace 225nm

    Acetaminophen, Black Trace 245 nm, Green Trace 195nm

    Ibuprofen, Black Trace 245 nm, Green Trace 195nm

    Diphenhydramine, Black Trace 245 nm, Green Trace 195nm

    All Analgesics, Black Trace 245 nm, Green Trace 200nm

    C18-PFP, 55% pH=9 0.025M phosphate buffer

    Mix A (order aspirin, caffeine and salicyclamide, and phenacetin) Black Trace 245 nm, Green Trace 210nm

    Ibuprofen, Black Trace 245 nm, Green Trace 195nm

    Diphenhydramine, Black Trace 245 nm, Green Trace 195nm

    All Analgesics, Black Trace 245 nm, Green Trace 200nm

    Unknown Tablets on C18-PFP, 55% pH=7 0.025M phosphate buffer

    Unknowns were crushed, dissolved in 250 mL water, and filter with 0.45 micropore filters, followed by a 1:10 dilution in methanol.

    Tablet 1, Black Trace 245 nm, Green Trace 195nm

    Tablet 2, Black Trace 245 nm, Green Trace 200nm

    Tablet 3, Black Trace 245 nm, Green Trace 200nm

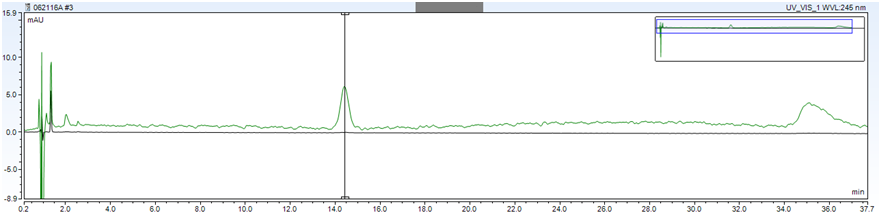

    Tablet 4, Black Trace 245 nm, Green Trace 200nm

    Tablet 5, Black Trace 245 nm, Green Trace 195nm

    Supplemental Information

    All stock solutions were made by dissolving weight listed of analgesic in 50.0 mL methanol

    Stock Compounds
    (Amount in Stock)

    pKa

    Melting Point

    Structure

    Aspirin (acetylsalicyclic acid)

    90mg

    3.49

    134-6˚C


    Caffeine

    30 mg

    10.4

    238˚C


    Salicyclamide

    90 mg

    8.37

    140-4˚C


    Phenacetin

    12 mg

    2.2

    133-8˚C


    Acetaminophen

    5 mg

    9.38-9.9

    169˚C


    Ibuprofen

    50 mg

    4.91-5.2

    76˚C


    Diphenhydramine HCl

    50 mg

    9-10.10

    166˚C


    Column Chemistries

    C18 particle surface


    RP-Amide particle surface (polar embedded group)


    C18-PFP particle surface (polar endcapped)
