Acetoacetic Ester Synthesis

[ "article:topic", "authorname:ggunawardena" ]
  • Page ID
    16553

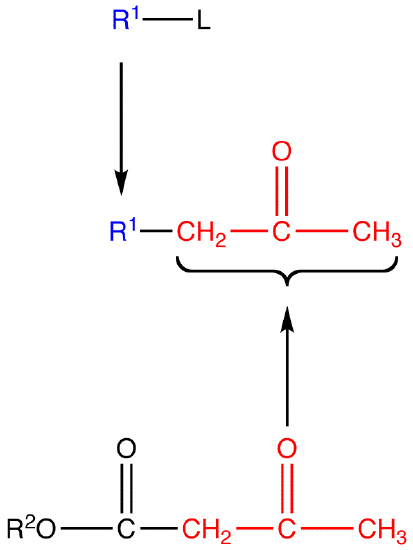

  • Acetoacetic ester synthesis is a synthetic procedure used to convert a compound that has the general structural formula 1 into aketone that has the general structural formula 2.


    • R1 = alvikyl
    • L = leang group

    The group —CH2COCH3 in 2 is contributed by an acetoacetic ester, hence the term acetoacetic ester synthesis.




    • R2 = alkyl, aryl

    Acetoacetic ester synthesis consists of four consecutive reactions that can be carried out in the same pot.

    • reaction 1: acid-base reaction
    • reaction 2: nucleophilic substitution
    • reaction 3: ester hydrolysis (using saponification)
    • reaction 4: decarboxylation

    eg:

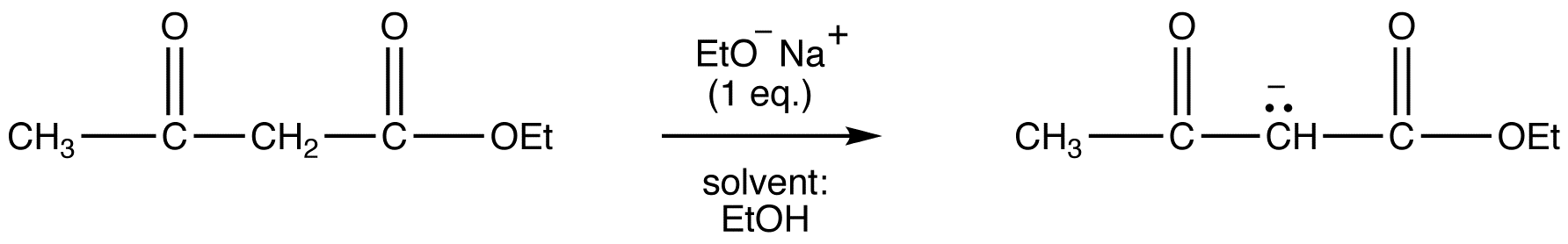

    reaction 1:

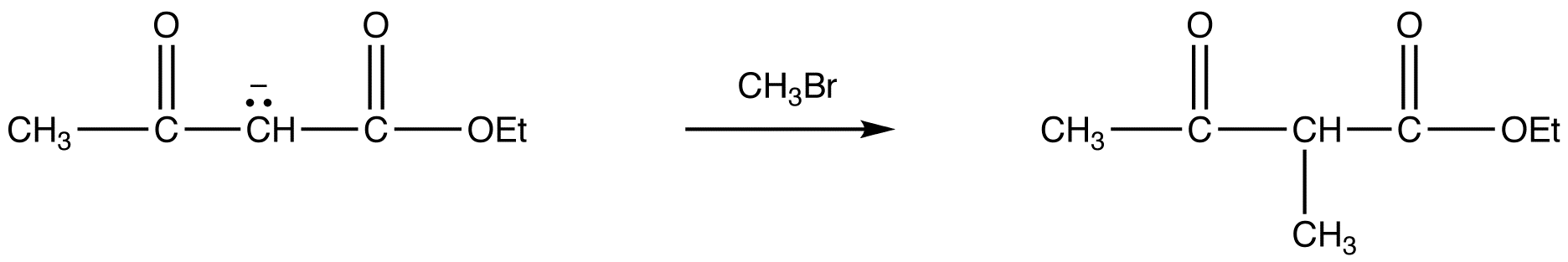

    reaction 2:

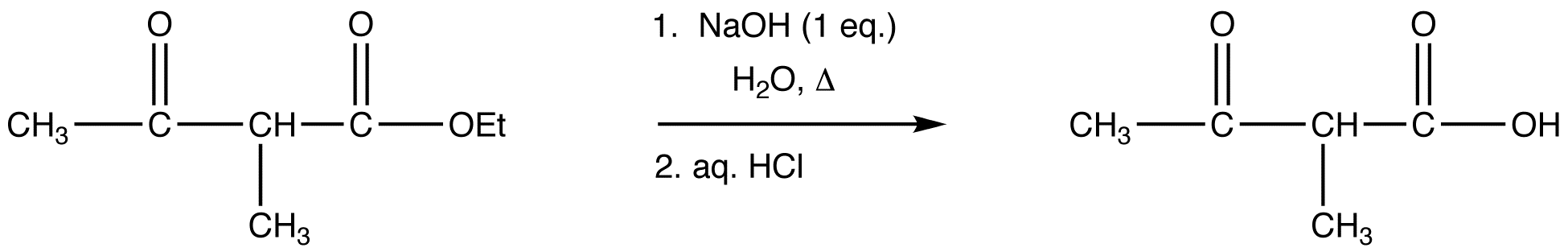

    reaction 3:

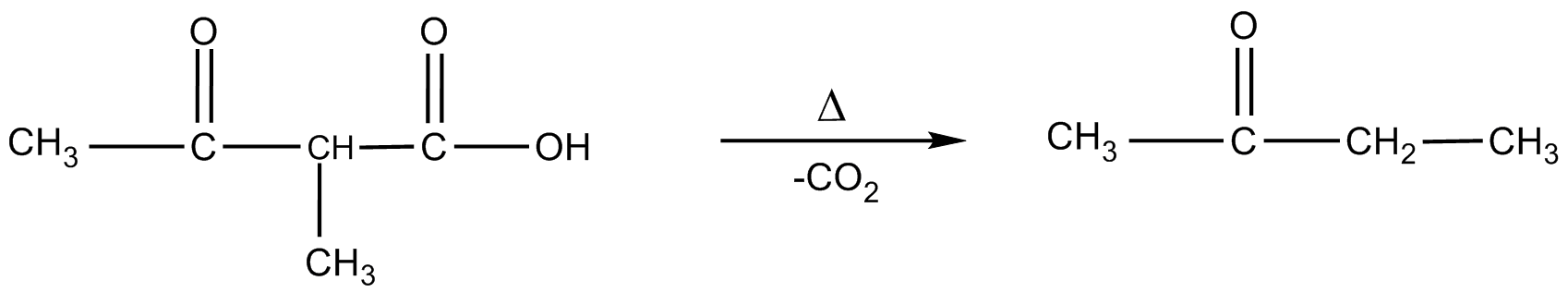

    reaction 4:


    A more direct method to convert 3 to 4 is the reaction of 3 with the enolate ion (5) of acetone.


    However, the generation of 5 from acetone quantitatively in high yield is not an easy task because the reaction requires a very strong base, such as LDA, and must be carried out at very low temperature under strictly anhydrous conditions.


    Acetoacetic ester synthesis provides a more convenient alternative to convert 3 to 4.

    Acetoacetic ester synthesis can be adapted to synthesize compounds that have the general structural formula 6.


    R3, R4 = identical or different alkyl groups

    eg:


    reaction 1:


    reaction 2:


    reaction 1 (repeat):

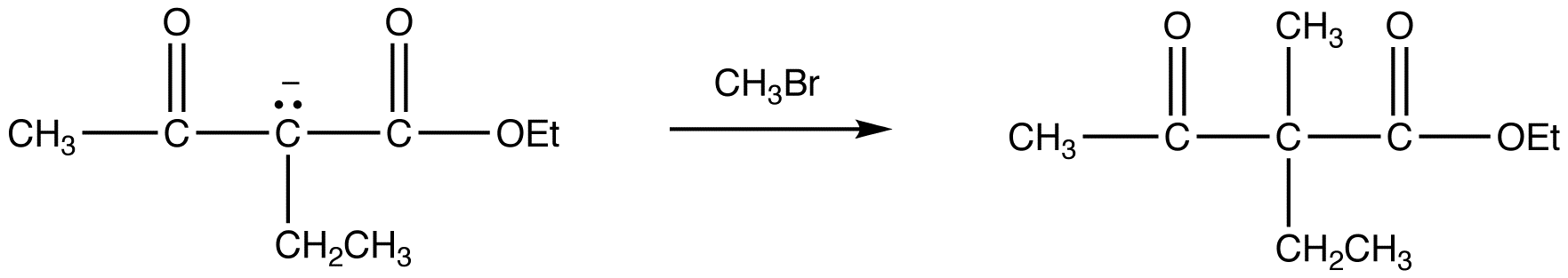

    reaction 2 (repeat):


    reaction 3:

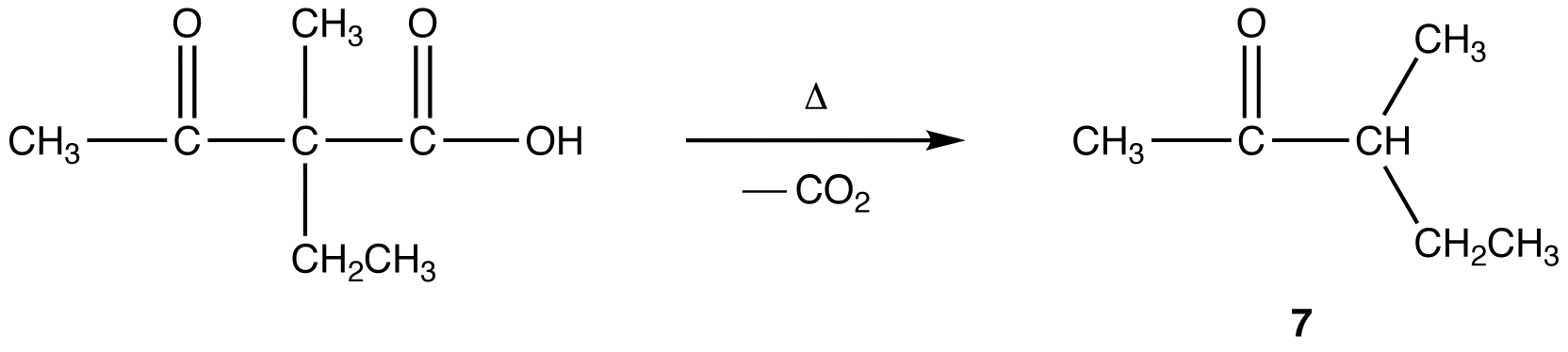

    reaction 4:
