Part 4: Particle in a two finite boxes potential

Approaching the problem

We can extend the calculations for the particle in a finite potential box (presented in a previous notebook) and apply it to a particle contained within two boxes separated by a barrier, all with independent finite potentials. In this problem, not only is the height of the potentials important, but the distance between them is also critical to the understanding of the behavior of the particle.

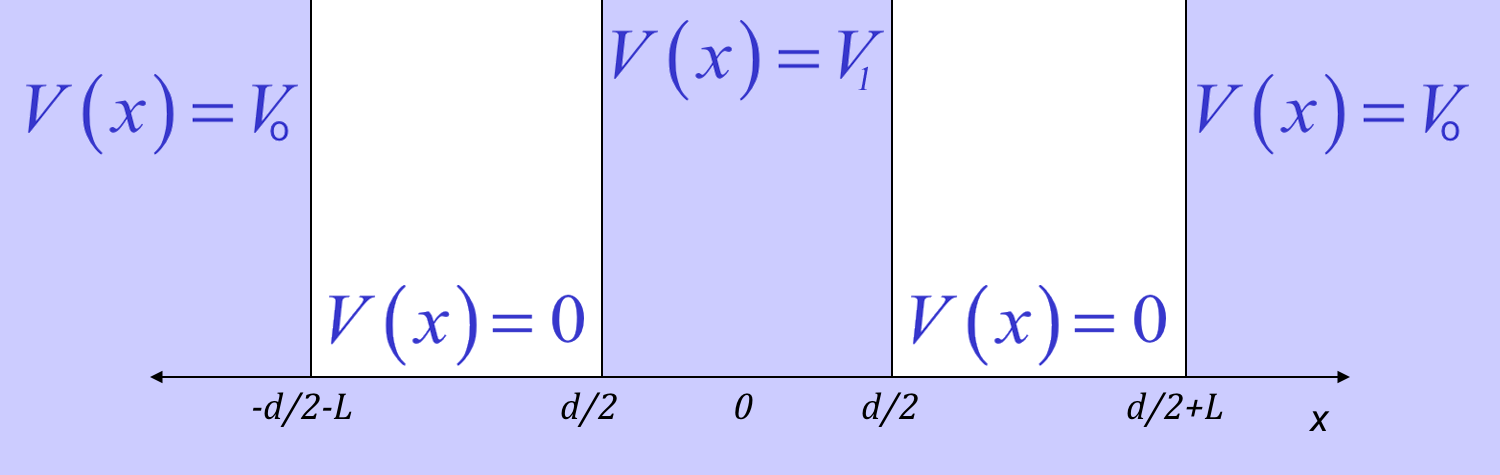

This is the potential $V(x)$ we are going to consider:

Or mathematically:

\[V(x) = \left\{ \begin{array}{lll} I: & V_o & \; \text{if } \; x \leq -\left(\frac{d}{2}+ L \right) \\ II: & 0 & \; \text{if}\; -\left(\frac{d}{2} +L\right) \leq x \leq -\frac{d}{2} \\ III: & V_1 & \; \text{if }\; -\frac{d}{2} \leq x \leq \frac{d}{2} \\ IV: & 0 & \; \text{if } \;\frac{d}{2} \leq x \leq \frac{d}{2}+L \\ V: & V_o & \; \text{if } \; x \geq \frac{d}{2}+ L \end{array} \right.\]

For simplicity, this section only considers the case in which $V_1 \geq V_o$.

As it was the case for a single box, the interesting situation is when $E \leq V_o$ and we look for the bound states. For energies larger than $V_o$ and $V_1$ the particle will be a free particle.

Since the potential is even ($V(-x) = V(x)$), the wavefunctions can be chosen to be even (i.e., $\psi(-x) = \psi(x)$) or odd $i.e., \(\psi(-x) = -\psi(x)$). Applying the first constrain, in which we consider that the wavefunctions must be finite, leads to the solutions for the Schrödinger equation for $E \leq V_o$ (bounded states) as:

Solutions

\[\psi(x) = \pm \psi(-x)\]

\[\begin{array} {lll} \text{For } I: & \psi(x) = \pm\; De^{\alpha_o x} \\ \text{For } II: & \psi(x) = \pm \left[B\cos(kx) + C\sin(kx)\right] \\ \text{For } III: & \psi(x) = A\left(e^{\alpha_1 x}\pm e^{-\alpha_1 x}\right) \\ \text{For } IV: & \psi(x) = B\cos(kx) + C\sin(kx) \\ \text{For } V: & \psi(x) = De^{-\alpha_o x} \\ \end{array} \label{1}\]

where the $\pm$ corresponds to the even or odd solutions, respectively. As before, the wavefunctions and their first derivatives must be continuous. In addition, at the boundaries between regions, the wavefucntions must have the same value.

After imposing the continuity and boundary conditions we reach the following relation for the allowed energy values:

Even solutions

\[\frac{\alpha_1\tanh\left(\alpha_1\frac{d}{2}\right)+k\tan\left(k\frac{d}{2}\right)}{k-\alpha_1\tanh\left(\alpha_1\frac{d}{2}\right)\tan\left(k\frac{d}{2}\right)}=\frac{-\alpha_o+k\tan\left[k\left(\frac{d}{2}+L\right)\right]}{k+\alpha_o\tan\left[k\left(\frac{d}{2}+L\right)\right]} \label{2}\]

Odd solutions

\[\frac{k\tanh\left(\alpha_1\frac{d}{2}\right)-\alpha_1\tan\left(k\frac{d}{2}\right)}{\alpha_1+k\tanh\left(\alpha_1\frac{d}{2}\right)\tan\left(k\frac{d}{2}\right)}=\frac{k+\alpha_o\tan\left[k\left(\frac{d}{2}+L\right)\right]}{-\alpha_o+k\tan\left[k\left(\frac{d}{2}+L\right)\right]} \label{3}\]

where:

\[\alpha_o = \frac{\sqrt{2m(V_o-E)}}{\hbar} \alpha_1 = \frac{\sqrt{2m(V_1-E)}}{\hbar} \hspace 3cm k = \frac{\sqrt{2mE}}{\hbar}\]

The allowed solutions will be those corresponding to energies that obey equations 2 and 3. Once we find the allowed energies, we can go back and obtain the wavefunctions with the proper coefficients.

Finding the allowed Energies graphically

import matplotlib.pyplot as plt
import numpy as np
# Reading the input variables from the user and making sure V1 > Vo
Vo = abs(float(input("Enter the value for Vo (in eV) = ")))
L = abs(float(input("Enter the value for L (box size, in Angstroms) = ")))
V1 = 0.9*Vo
while(V1<Vo):
    V1 = float(input("Enter the value for V1 (V1 >= Vo, in eV) = "))
    if(V1<Vo):
        print ("V1 cannot be higher than Vo. Please enter the value for V1 again.\n")
d = abs(float(input("Enter the value for d (barrier size, in Angstroms) = ")))

val = np.sqrt(2.0*9.10938356e-31*1.60217662e-19)*1e-10/(1.05457180013e-34)
# equal to sqrt(2m_e (kg)* (Joules/eV)* 1 (m/A)/hbar (in J.sec)

# Defining functions that come from the energy expression
def f0(E):
    var = -np.sqrt(Vo-E)+np.sqrt(E)*np.tan(np.sqrt(E)*val*(d/2.0+L))
    var = var/(np.sqrt(E)+np.sqrt(Vo-E)*np.tan(np.sqrt(E)*val*(d/2.0+L)))
    return var

def f1(E):
    var = np.sqrt(V1-E)*np.tanh(d*np.sqrt(V1-E)*val/2.0)+np.sqrt(E)*np.tan(d*np.sqrt(E)*val/2.0)
    var = var/(np.sqrt(E)-np.sqrt(V1-E)*np.tanh(d*np.sqrt(V1-E)*val/2.0)*np.tan(d*np.sqrt(E)*val/2.0))
    return var

def f2(E):
    var = np.sqrt(E)+np.sqrt(Vo-E)*np.tan(np.sqrt(E)*val*(d/2.0+L))
    var = var/(np.sqrt(E)*np.tan(np.sqrt(E)*val*(d/2.0+L))-np.sqrt(Vo-E))
    return var

def f3(E):
    var = np.sqrt(E)*np.tanh(d*np.sqrt(V1-E)*val/2.0)-np.sqrt(V1-E)*np.tan(d*np.sqrt(E)*val/2.0)
    var = var/(np.sqrt(V1-E)+np.sqrt(E)*np.tanh(d*np.sqrt(V1-E)*val/2.0)*np.tan(d*np.sqrt(E)*val/2.0))
    return var

# Defining maximum values to be displayed on the y axes
maxval = 0.0
for n in range(10):
    if (abs(f1(n*Vo/10.0))>maxval and abs(f1(n*Vo/10.0))!=float('inf')): maxval = abs(f1(n*Vo/10.0))
if (np.sqrt(Vo)*1.9>maxval):
    ymax1 = 1.9*np.sqrt(Vo)
else:
    ymax1 = maxval
maxval = 0.0
for n in range(10):
    if (abs(f3(n*Vo/10.0))>maxval and abs(f3(n*Vo/10.0))!=float('inf')): maxval = abs(f3(n*Vo/10.0))
if (np.sqrt(Vo)*1.9>maxval):
    ymax2 = 1.9*np.sqrt(Vo)
else:
    ymax2 = maxval

# Generating the wavefunction graph
plt.rcParams.update({'font.size': 18, 'font.family': 'STIXGeneral', 'mathtext.fontset': 'stix'})
fig, axes = plt.subplots(1, 2, figsize=(13,4))
axes[0].axis([0.0,Vo,-ymax1,ymax1])
axes[0].set_xlabel(r'$E$ (eV)')
axes[0].set_ylabel(r'')
axes[0].set_title('Even solutions')
axes[1].axis([0.0,Vo,-ymax2,ymax2])
axes[1].set_xlabel(r'$E$ (eV)')
axes[1].set_ylabel(r'')
axes[1].set_title('Odd solutions')
E_even = np.linspace(0.0, Vo, 100000)
E_odd = np.linspace(0.0, Vo, 100000)
# Removing discontinuity points
for n in range(100000):
    if abs(np.sqrt(E_even[n])+np.sqrt(Vo-E_even[n])*np.tan(np.sqrt(E_even[n])*val*(d/2.0+L)))<0.01: E_even[n] = np.nan
    if abs(np.sqrt(E_even[n])-np.sqrt(V1-E_even[n])*np.tanh(d*np.sqrt(V1-E_even[n])*val/2.0)*np.tan(d*np.sqrt(E_even[n])*val/2.0))<0.01: E_even[n] = np.nan
    if abs(np.sqrt(E_odd[n])*np.tan(np.sqrt(E_odd[n])*val*(d/2.0+L))-np.sqrt(Vo-E_odd[n]))<0.01: E_odd[n] = np.nan
    if abs(np.sqrt(V1-E_odd[n])+np.sqrt(E_odd[n])*np.tanh(d*np.sqrt(V1-E_odd[n])*val/2.0)*np.tan(d*np.sqrt(E_odd[n])*val/2.0))<0.01: E_odd[n] = np.nan
# Plotting the curves and setting the labelsaxes[0].plot(E_even, f0(E_even), label=r"$\frac{-\alpha_o+k\tan\left[k\left(\frac{d}{2}+a\right)\right]}{k+\alpha_o\tan\left[k\left(\frac{d}{2}+a\right)\right]}$", color="blue")
axes[0].plot(E_even, f0(E_even), label=r"$\frac{-\alpha_o+k\tan\left[k\left(\frac{d}{2}+L\right)\right]}{k+\alpha_o\tan\left[k\left(\frac{d}{2}+L\right)\right]}$", color="blue")
axes[0].plot(E_even, f1(E_even), label=r"$\frac{\alpha_1\tanh\left(\alpha_1\frac{d}{2}\right)+k\tan\left(k\frac{d}{2}\right)}{k-\alpha_1\tanh\left(\alpha_1\frac{d}{2}\right)\tan\left(k\frac{d}{2}\right)}$", color="red")
axes[1].plot(E_odd,  f2(E_odd),  label=r"$\frac{k+\alpha_o\tan\left[k\left(\frac{d}{2}+L\right)\right]}{-\alpha_o+k\tan\left[k\left(\frac{d}{2}+L\right)\right]}$", color="blue")
axes[1].plot(E_odd,  f3(E_odd),  label=r"$\frac{k\tanh\left(\alpha_1\frac{d}{2}\right)-\alpha_1\tan\left(k\frac{d}{2}\right)}{\alpha_1+k\tanh\left(\alpha_1\frac{d}{2}\right)\tan\left(k\frac{d}{2}\right)}$", color="red")
# Chosing the positions of the legends
axes[0].legend(bbox_to_anchor=(0.05, -0.2), loc=2, borderaxespad=0.0)
axes[1].legend(bbox_to_anchor=(0.05, -0.2), loc=2, borderaxespad=0.0)

# Show the plots on the screen once the code reaches this point
plt.show()

The allowed values would then be the values of $E$ in which the two curves cross. Here are some question to think about.

Questions

Q1: How many bound states are possible?
Q2: How many bound states are even and how many are odd?
Q3: Is the ground state described by an even or an odd wavefunction?
Q4: Can you read accurately the allowed values of energy from these graphs?

The allowed values of $E$ can be found numerically, yielding:

print ("The allowed bounded energies are:")
# We want to find the values of E in which f_even and f_odd are zero
f_even = lambda E : f0(E)-f1(E)
f_odd = lambda E : f2(E)-f3(E)
E_old = 0.0
f_even_old = f_even(0.0)
f_odd_old = f_odd(0.0)
n_even = 1
n_odd = 1
E_vals = np.zeros(999)
n = 1
# Here we loop from E = 0 to E = Vo seeking roots
for E in np.linspace(0.0, Vo, 200000):
    f_even_now = f_even(E)
    # If the difference is zero or if it changes sign then we might have passed through a root
    if (f_even_now == 0.0 or f_even_now/f_even_old < 0.0):
        # If the old values of f are not close to zero, this means we didn't pass through a root but
        # through a discontinuity point
        if (abs(f_even_now)<1.0 and abs(f_even_old)<1.0):
            E_vals[n-1] = (E+E_old)/2.0
            print ("  State #%3d (Even wavefunction): %9.4f eV, %13.6g J" % (n,E_vals[n-1],E_vals[n-1]*1.60217662e-19))
            n += 1
            n_even += 1
    f_odd_now = f_odd(E)
    # If the difference is zero or if it changes sign then we might have passed through a root
    if (f_odd_now == 0.0 or f_odd_now/f_odd_old < 0.0) and (E>0.0):
        # If the old values of f are not close to zero, this means we didn't pass through a root but
        # through a discontinuity point
        if (abs(f_odd_now)<1.0 and abs(f_odd_old)<1.0):
            E_vals[n-1] = (E+E_old)/2.0
            print ("  State #%3d  (Odd wavefunction): %9.4f eV, %13.6g J" % (n,E_vals[n-1],E_vals[n-1]*1.60217662e-19))
            n += 1
            n_odd += 1
    E_old = E
    f_even_old = f_even_now
    f_odd_old = f_odd_now
nstates = n-1
print ("\nTHERE ARE %3d POSSIBLE BOUNDED ENERGIES" % nstates)

Since the lowest energy corresponds to the even solution of the wavefunction, and the states are labeled by their quantum number $(n=1,2...n_{max})$, the even solutions will correspond to odd quantum numbers and the odd solutions will correspond to even quantum numbers.

Plotting an Energy Diagram helps us to see the energy separation between the states

import matplotlib.pyplot as plt

# Generating the energy diagram
fig, ax = plt.subplots(figsize=(8,14))
ax.spines['right'].set_color('none')
ax.yaxis.tick_left()
ax.spines['bottom'].set_color('none')
ax.axes.get_xaxis().set_visible(False)
ax.spines['top'].set_color('none')
ax.axis([0.0,20.0,0.0,1.1*Vo])
ax.set_ylabel(r'$E_n$ (eV)')
for n in range(1,nstates+1):
    str1="$n = "+str(n)+r"$, $E_{"+str(n)+r"} = %.3f$ eV"%(E_vals[n-1])
    if(n%2==1):
        ax.text(0.5, E_vals[n-1]-0.005*Vo, str1, fontsize=16, color="#ff4d4d")
        ax.hlines(E_vals[n-1], 7.2, 18.3, linewidth=1.8, linestyle='--', color="#ff4d4d")
    else:
        ax.text(18.5, E_vals[n-1]-0.005*Vo, str1, fontsize=16, color="#800000")
        ax.hlines(E_vals[n-1], 7.2, 18.3, linewidth=1.8, linestyle='--', color="#800000")
str1="$V_o = %.3f$ eV"%(Vo)
#ax.text(18.5, Vo-0.01*Vo, str1, fontsize=16, color="blue")
ax.text(10, Vo+0.01*Vo, str1, fontsize=16, color="blue")
ax.hlines(Vo, 7.2, 18.3, linewidth=1.8, linestyle='-', color="blue")
ax.hlines(0.0, 0.0, 20.0, linewidth=1.8, linestyle='-', color="black")
plt.title("Energy Levels", fontsize=30)
plt.show()

We can now plug the values of $E$ back into the wavefunction expressions and plot the wavefunctions and the corresponding probability densities.

import matplotlib.pyplot as plt
import numpy as np

print ("\nThe Wavefunctions are:")

# Drawing the backgroung graph
fig, axes = plt.subplots(1, 2, figsize=(19,9))
axes[0].spines['right'].set_color('none')
axes[0].xaxis.tick_bottom()
axes[0].spines['left'].set_color('none')
axes[0].axes.get_yaxis().set_visible(False)
axes[0].spines['top'].set_color('none')

if (V1 > 1.4*Vo):
    Ymax=1.4*Vo
else:
    Ymax=1.1*V1
axes[0].axis([-1.5*L-d/2.0,1.5*L+d/2.0,0.0,Ymax])
axes[0].set_xlabel(r'$X$ (Angstroms)')
str1="$V_o = %.2f$ eV"%(Vo)
str2="$V_1 = %.2f$ eV"%(V1)
axes[0].text(1.05*(L+d/2.0), 1.02*Vo, str1, fontsize=24, color="blue")
axes[0].text(-1.5*(L+d/2.0), 1.02*Vo, str1, fontsize=24, color="blue")
if(d>0.0): axes[0].text(d/2, 1.02*Vo, str2, fontsize=24, color="blue")
# Defining the maximum amplitude of the wavefunction
if ((E_vals[1]-E_vals[0])/(E_vals[2]-E_vals[0]) < 0.2):
    amp = np.sqrt((E_vals[2]-E_vals[0])/1.5)
else:
    amp = np.sqrt((E_vals[1]-E_vals[0])/1.5)
# Plotting the energy levels
for n in range(1,nstates+1):
    # Odd solution
    if (n%2==0): axes[0].hlines(E_vals[n-1], -1.5*L-d/2.0, 1.5*L+d/2.0, linewidth=1.8, linestyle='--', color="#800000")
    # Even solution
    if (n%2==1): axes[0].hlines(E_vals[n-1], -1.5*L-d/2.0, 1.5*L+d/2.0, linewidth=1.8, linestyle='--', color="#ff4d4d")
axes[0].margins(0.00)
axes[0].vlines(-L-d/2.0, 0.0, Vo, linewidth=4.8, color="blue")
if(d>0.0):
    axes[0].vlines(-d/2.0, 0.0, V1, linewidth=4.8, color="blue")
    axes[0].vlines(d/2.0, 0.0, V1, linewidth=4.8, color="blue")
axes[0].vlines(L+d/2.0, 0.0, Vo, linewidth=4.8, color="blue")
axes[0].hlines(Vo, -1.5*L-d/2.0, -L-d/2.0, linewidth=4.8, color="blue")
axes[0].hlines(0.0, -L-d/2.0, -d/2.0, linewidth=4.8, color="blue")
axes[0].hlines(V1, -d/2.0, d/2.0, linewidth=4.8, color="blue")
axes[0].hlines(0.0, d/2.0, L+d/2.0, linewidth=4.8, color="blue")
axes[0].hlines(Vo, L+d/2.0, 1.5*L+d/2.0, linewidth=4.8, color="blue")
axes[0].set_title('Even Wavefunctions', fontsize=30)

# Defining the X ranges
X_lef2 = np.linspace(-1.5*L-d/2.0, -L-d/2.0, 900,endpoint=True)
X_lef1 = np.linspace(-L-d/2.0, -d/2.0, 900,endpoint=True)
X_mid = np.linspace(-d/2.0, d/2.0, 900,endpoint=True)
X_rig1 = np.linspace(d/2.0, L+d/2.0, 900,endpoint=True)
X_rig2 = np.linspace(L+d/2.0, 1.5*L+d/2.0, 900,endpoint=True)

# Plotting the  wavefunctions
for n in range(1,nstates+1):
    k = np.sqrt(E_vals[n-1])*val
    a0 = np.sqrt(Vo-E_vals[n-1])*val
    a1 = np.sqrt(V1-E_vals[n-1])*val
    str1="$n = "+str(n)+r"$, $E_{"+str(n)+r"} = %.3f$ eV"%(E_vals[n-1])
    # Even solution wavefunctions
    if (n%2==1):
        B = amp/np.sqrt(f1(E_vals[n-1])*f1(E_vals[n-1])+1.0)
        C = f1(E_vals[n-1])*B
        A = (B*np.cos(k*d/2.0)+C*np.sin(k*d/2.0))/(np.exp(-a1*d/2.0)+np.exp(a1*d/2.0))
        D = np.exp(a0*(L+d/2.0))*(B*np.cos(k*(L+d/2.0))+C*np.sin(k*(L+d/2.0)))
        axes[0].plot(X_lef2, E_vals[n-1]+D*np.exp(a0*X_lef2), color="#ff4d4d", label="", linewidth=2.8)
        axes[0].plot(X_lef1, E_vals[n-1]+B*np.cos(k*X_lef1)-C*np.sin(k*X_lef1), color="#ff4d4d", label="", linewidth=2.8)
        axes[0].plot(X_mid,  E_vals[n-1]+A*(np.exp(-a1*X_mid)+np.exp(a1*X_mid)), color="#ff4d4d", label="", linewidth=2.8)
        axes[0].plot(X_rig1, E_vals[n-1]+B*np.cos(k*X_rig1)+C*np.sin(k*X_rig1), color="#ff4d4d", label="", linewidth=2.8)
        axes[0].plot(X_rig2, E_vals[n-1]+D*np.exp(-a0*X_rig2), color="#ff4d4d", label="", linewidth=2.8)
        axes[0].text(1.25*(L+d/2.0), E_vals[n-1]+0.01*Vo, str1, fontsize=16, color="#ff4d4d")

# Drawing the backgroung graph
axes[1].spines['right'].set_color('none')
axes[1].xaxis.tick_bottom()
axes[1].spines['left'].set_color('none')
axes[1].axes.get_yaxis().set_visible(False)
axes[1].spines['top'].set_color('none')
axes[1].axis([-1.5*L-d/2.0,1.5*L+d/2.0,0.0,Ymax])
axes[1].set_xlabel(r'$X$ (Angstroms)')
str1="$V_o = %.3f$ eV"%(Vo)
str11="$V_1= %.3f$ eV"% (V1)
axes[1].text(1.05*(L+d/2.0), 1.02*Vo, str1, fontsize=24, color="blue")
axes[1].text(-1.5*(L+d/2.0), 1.02*Vo, str1, fontsize=24, color="blue")
if(d>0.0): axes[1].text(d/2, 1.02*Vo, str2, fontsize=24, color="blue")
# Defining the maximum amplitude of the wavefunction
if ((E_vals[1]-E_vals[0])/(E_vals[2]-E_vals[0]) < 0.2):
    amp = np.sqrt((E_vals[2]-E_vals[0])/1.5)
else:
    amp = np.sqrt((E_vals[1]-E_vals[0])/1.5)
# Plotting the energy levels
for n in range(1,nstates+1):
    # Odd solution
    if (n%2==0): axes[1].hlines(E_vals[n-1], -1.5*L-d/2.0, 1.5*L+d/2.0, linewidth=1.8, linestyle='--', color="#800000")
    # Even solution
    if (n%2==1): axes[1].hlines(E_vals[n-1], -1.5*L-d/2.0, 1.5*L+d/2.0, linewidth=1.8, linestyle='--', color="#ff4d4d")
    ax.margins(0.00)
axes[1].vlines(-L-d/2.0, 0.0, Vo, linewidth=4.8, color="blue")
if(d>0.0):
    axes[1].vlines(-d/2.0, 0.0, V1, linewidth=4.8, color="blue")
    axes[1].vlines(d/2.0, 0.0, V1, linewidth=4.8, color="blue")
axes[1].vlines(L+d/2.0, 0.0, Vo, linewidth=4.8, color="blue")
axes[1].hlines(Vo, -1.5*L-d/2.0, -L-d/2.0, linewidth=4.8, color="blue")
axes[1].hlines(0.0, -L-d/2.0, -d/2.0, linewidth=4.8, color="blue")
axes[1].hlines(V1, -d/2.0, d/2.0, linewidth=4.8, color="blue")
axes[1].hlines(0.0, d/2.0, L+d/2.0, linewidth=4.8, color="blue")
axes[1].hlines(Vo, L+d/2.0, 1.5*L+d/2.0, linewidth=4.8, color="blue")
axes[1].set_title('Odd Wavefunctions', fontsize=30)

# Defining the X ranges
X_lef2 = np.linspace(-1.5*L-d/2.0, -L-d/2.0, 900,endpoint=True)
X_lef1 = np.linspace(-L-d/2.0, -d/2.0, 900,endpoint=True)
X_mid = np.linspace(-d/2.0, d/2.0, 900,endpoint=True)
X_rig1 = np.linspace(d/2.0, L+d/2.0, 900,endpoint=True)
X_rig2 = np.linspace(L+d/2.0, 1.5*L+d/2.0, 900,endpoint=True)

# Plotting the wavefunctions
for n in range(1,nstates+1):
    k = np.sqrt(E_vals[n-1])*val
    a0 = np.sqrt(Vo-E_vals[n-1])*val
    a1 = np.sqrt(V1-E_vals[n-1])*val
    str1="$n = "+str(n)+r"$, $E_{"+str(n)+r"} = %.3f$ eV"%(E_vals[n-1])
    # Odd solution
    if (n%2==0):
        C = amp/np.sqrt(f3(E_vals[n-1])*f3(E_vals[n-1])+1.0)
        B = f3(E_vals[n-1])*C
        A = (B*np.cos(k*d/2.0)+C*np.sin(k*d/2.0))/(-np.exp(-a1*d/2.0)+np.exp(a1*d/2.0))
        D = np.exp(a0*(L+d/2.0))*(B*np.cos(k*(L+d/2.0))+C*np.sin(k*(L+d/2.0)))
        axes[1].plot(X_lef2, E_vals[n-1]-D*np.exp(a0*X_lef2), color="#800000", label="", linewidth=2.8)
        axes[1].plot(X_lef1, E_vals[n-1]-B*np.cos(k*X_lef1)+C*np.sin(k*X_lef1), color="#800000", label="", linewidth=2.8)
        axes[1].plot(X_mid,  E_vals[n-1]+A*(-np.exp(-a1*X_mid)+np.exp(a1*X_mid)), color="#800000", label="", linewidth=2.8)
        axes[1].plot(X_rig1, E_vals[n-1]+B*np.cos(k*X_rig1)+C*np.sin(k*X_rig1), color="#800000", label="", linewidth=2.8)
        axes[1].plot(X_rig2, E_vals[n-1]+D*np.exp(-a0*X_rig2), color="#800000", label="", linewidth=2.8)
        axes[1].text(1.25*(L+d/2.0), E_vals[n-1]+0.01*Vo, str1, fontsize=16, color="#800000")

plt.show()

The even wavefunctions maintain the numbers of nodes as in the separate boxes, while the odd solutions have an additional node at the center of the barrier. Since the lowest energy corresponds to the even solution of the wavefunction, and the states are labeled by their quantum number ($n=1, 2, ..., n_{max}$), the even solutions will correspond to odd quantum numbers and the odd solutions will correspond to even quantum numbers.

In [43]:

import matplotlib.pyplot as plt
import numpy as np

print ("\nThe Probability Densities are:")

# Drawing the backgroung graph
fig, axes = plt.subplots(1, 2, figsize=(19,9))
axes[0].spines['right'].set_color('none')
axes[0].xaxis.tick_bottom()
axes[0].spines['left'].set_color('none')
axes[0].axes.get_yaxis().set_visible(False)
axes[0].spines['top'].set_color('none')

if (V1 > 1.4*Vo):
    Ymax=1.4*Vo
else:
    Ymax=1.1*V1
axes[0].axis([-1.5*L-d/2.0,1.5*L+d/2.0,0.0,Ymax])
axes[0].set_xlabel(r'$X$ (Angstroms)')
str1="$V_o = %.2f$ eV"%(Vo)
str2="$V_1 = %.2f$ eV"%(V1)
axes[0].text(1.05*(L+d/2.0), 1.02*Vo, str1, fontsize=24, color="blue")
axes[0].text(-1.5*(L+d/2.0), 1.02*Vo, str1, fontsize=24, color="blue")
if(d>0.0): axes[0].text(d/2, 1.02*Vo, str2, fontsize=24, color="blue")
# Defining the maximum amplitude of the wavefunction
if ((E_vals[1]-E_vals[0])/(E_vals[2]-E_vals[0]) < 0.2):
    amp = np.sqrt((E_vals[2]-E_vals[0])/1.5)
else:
    amp = np.sqrt((E_vals[1]-E_vals[0])/1.5)
# Plotting the energy levels
for n in range(1,nstates+1):
    # Odd solution
    if (n%2==0): axes[0].hlines(E_vals[n-1], -1.5*L-d/2.0, 1.5*L+d/2.0, linewidth=1.8, linestyle='--', color="#800000")
    # Even solution
    if (n%2==1): axes[0].hlines(E_vals[n-1], -1.5*L-d/2.0, 1.5*L+d/2.0, linewidth=1.8, linestyle='--', color="#ff4d4d")
axes[0].margins(0.00)
axes[0].vlines(-L-d/2.0, 0.0, Vo, linewidth=4.8, color="blue")
if(d>0.0):
    axes[0].vlines(-d/2.0, 0.0, V1, linewidth=4.8, color="blue")
    axes[0].vlines(d/2.0, 0.0, V1, linewidth=4.8, color="blue")
axes[0].vlines(L+d/2.0, 0.0, Vo, linewidth=4.8, color="blue")
axes[0].hlines(Vo, -1.5*L-d/2.0, -L-d/2.0, linewidth=4.8, color="blue")
axes[0].hlines(0.0, -L-d/2.0, -d/2.0, linewidth=4.8, color="blue")
axes[0].hlines(V1, -d/2.0, d/2.0, linewidth=4.8, color="blue")
axes[0].hlines(0.0, d/2.0, L+d/2.0, linewidth=4.8, color="blue")
axes[0].hlines(Vo, L+d/2.0, 1.5*L+d/2.0, linewidth=4.8, color="blue")
axes[0].set_title('Probability Density for Even Wavefunctions', fontsize=30)

# Defining the X ranges
X_lef2 = np.linspace(-1.5*L-d/2.0, -L-d/2.0, 900,endpoint=True)
X_lef1 = np.linspace(-L-d/2.0, -d/2.0, 900,endpoint=True)
X_mid = np.linspace(-d/2.0, d/2.0, 900,endpoint=True)
X_rig1 = np.linspace(d/2.0, L+d/2.0, 900,endpoint=True)
X_rig2 = np.linspace(L+d/2.0, 1.5*L+d/2.0, 900,endpoint=True)

# Plotting the probability densities
for n in range(1,nstates+1):
    k = np.sqrt(E_vals[n-1])*val
    a0 = np.sqrt(Vo-E_vals[n-1])*val
    a1 = np.sqrt(V1-E_vals[n-1])*val
    str1="$n = "+str(n)+r"$, $E_{"+str(n)+r"} = %.3f$ eV"%(E_vals[n-1])
    # Even solution wavefunctions
    if (n%2==1):
        B = amp/np.sqrt(f1(E_vals[n-1])*f1(E_vals[n-1])+1.0)
        C = f1(E_vals[n-1])*B
        A = (B*np.cos(k*d/2.0)+C*np.sin(k*d/2.0))/(np.exp(-a1*d/2.0)+np.exp(a1*d/2.0))
        D = np.exp(a0*(L+d/2.0))*(B*np.cos(k*(L+d/2.0))+C*np.sin(k*(L+d/2.0)))
        axes[0].plot(X_lef2, E_vals[n-1]+(D*np.exp(a0*X_lef2))**2, color="#ff4d4d", label="", linewidth=2.8)
        axes[0].fill_between(X_lef2, E_vals[n-1], E_vals[n-1]+(D*np.exp(a0*X_lef2))**2, color="#3dbb2a")
        axes[0].plot(X_lef1, E_vals[n-1]+(B*np.cos(k*X_lef1)-C*np.sin(k*X_lef1))**2, color="#ff4d4d", label="", linewidth=2.8)
        axes[0].plot(X_mid,  E_vals[n-1]+(A*(np.exp(-a1*X_mid)+np.exp(a1*X_mid)))**2, color="#ff4d4d", label="", linewidth=2.8)
        if(d>0.0): axes[0].fill_between(X_mid, E_vals[n-1], E_vals[n-1]+(A*(np.exp(-a1*X_mid)+np.exp(a1*X_mid)))**2, color="purple")
        axes[0].plot(X_rig1, E_vals[n-1]+(B*np.cos(k*X_rig1)+C*np.sin(k*X_rig1))**2, color="#ff4d4d", label="", linewidth=2.8)
        axes[0].plot(X_rig2, E_vals[n-1]+(D*np.exp(-a0*X_rig2))**2, color="#ff4d4d", label="", linewidth=2.8)
        axes[0].fill_between(X_rig2, E_vals[n-1], E_vals[n-1]+(D*np.exp(-a0*X_rig2))**2, color="#3dbb2a")
        axes[0].text(1.25*(L+d/2.0), E_vals[n-1]+0.01*Vo, str1, fontsize=16, color="#ff4d4d")

# Drawing the backgroung graph
axes[1].spines['right'].set_color('none')
axes[1].xaxis.tick_bottom()
axes[1].spines['left'].set_color('none')
axes[1].axes.get_yaxis().set_visible(False)
axes[1].spines['top'].set_color('none')
axes[1].axis([-1.5*L-d/2.0,1.5*L+d/2.0,0.0,Ymax])
axes[1].set_xlabel(r'$X$ (Angstroms)')
str1="$V_o = %.3f$ eV"%(Vo)
str11="$V_1= %.3f$ eV"% (V1)
axes[1].text(1.05*(L+d/2.0), 1.02*Vo, str1, fontsize=24, color="blue")
axes[1].text(-1.5*(L+d/2.0), 1.02*Vo, str1, fontsize=24, color="blue")
if(d>0.0): axes[1].text(d/2, 1.02*Vo, str2, fontsize=24, color="blue")
# Defining the maximum amplitude of the wavefunction
if ((E_vals[1]-E_vals[0])/(E_vals[2]-E_vals[0]) < 0.2):
    amp = np.sqrt((E_vals[2]-E_vals[0])/1.5)
else:
    amp = np.sqrt((E_vals[1]-E_vals[0])/1.5)
# Plotting the energy levels
for n in range(1,nstates+1):
    # Odd solution
    if (n%2==0): axes[1].hlines(E_vals[n-1], -1.5*L-d/2.0, 1.5*L+d/2.0, linewidth=1.8, linestyle='--', color="#800000")
    # Even solution
    if (n%2==1): axes[1].hlines(E_vals[n-1], -1.5*L-d/2.0, 1.5*L+d/2.0, linewidth=1.8, linestyle='--', color="#ff4d4d")
    ax.margins(0.00)
axes[1].vlines(-L-d/2.0, 0.0, Vo, linewidth=4.8, color="blue")
if(d>0.0):
    axes[1].vlines(-d/2.0, 0.0, V1, linewidth=4.8, color="blue")
    axes[1].vlines(d/2.0, 0.0, V1, linewidth=4.8, color="blue")
axes[1].vlines(L+d/2.0, 0.0, Vo, linewidth=4.8, color="blue")
axes[1].hlines(Vo, -1.5*L-d/2.0, -L-d/2.0, linewidth=4.8, color="blue")
axes[1].hlines(0.0, -L-d/2.0, -d/2.0, linewidth=4.8, color="blue")
axes[1].hlines(V1, -d/2.0, d/2.0, linewidth=4.8, color="blue")
axes[1].hlines(0.0, d/2.0, L+d/2.0, linewidth=4.8, color="blue")
axes[1].hlines(Vo, L+d/2.0, 1.5*L+d/2.0, linewidth=4.8, color="blue")
axes[1].set_title('Probability Density for Odd Wavefunctions', fontsize=30)

# Defining the X ranges
X_lef2 = np.linspace(-1.5*L-d/2.0, -L-d/2.0, 900,endpoint=True)
X_lef1 = np.linspace(-L-d/2.0, -d/2.0, 900,endpoint=True)
X_mid = np.linspace(-d/2.0, d/2.0, 900,endpoint=True)
X_rig1 = np.linspace(d/2.0, L+d/2.0, 900,endpoint=True)
X_rig2 = np.linspace(L+d/2.0, 1.5*L+d/2.0, 900,endpoint=True)

# Plotting the wavefunctions
for n in range(1,nstates+1):
    k = np.sqrt(E_vals[n-1])*val
    a0 = np.sqrt(Vo-E_vals[n-1])*val
    a1 = np.sqrt(V1-E_vals[n-1])*val
    str1="$n = "+str(n)+r"$, $E_{"+str(n)+r"} = %.3f$ eV"%(E_vals[n-1])
    # Odd solution
    if (n%2==0):
        C = amp/np.sqrt(f3(E_vals[n-1])*f3(E_vals[n-1])+1.0)
        B = f3(E_vals[n-1])*C
        A = (B*np.cos(k*d/2.0)+C*np.sin(k*d/2.0))/(-np.exp(-a1*d/2.0)+np.exp(a1*d/2.0))
        D = np.exp(a0*(L+d/2.0))*(B*np.cos(k*(L+d/2.0))+C*np.sin(k*(L+d/2.0)))
        axes[1].plot(X_lef2, E_vals[n-1]+(D*np.exp(a0*X_lef2))**2, color="#800000", label="", linewidth=2.8)
        axes[1].fill_between(X_lef2, E_vals[n-1], E_vals[n-1]+(D*np.exp(a0*X_lef2))**2, color="#3dbb2a")
        axes[1].plot(X_lef1, E_vals[n-1]+(-B*np.cos(k*X_lef1)+C*np.sin(k*X_lef1))**2, color="#800000", label="", linewidth=2.8)
        axes[1].plot(X_mid,  E_vals[n-1]+(A*(-np.exp(-a1*X_mid)+np.exp(a1*X_mid)))**2, color="#800000", label="", linewidth=2.8)
        if(d>0.0): axes[1].fill_between(X_mid, E_vals[n-1], E_vals[n-1]+(A*(-np.exp(-a1*X_mid)+np.exp(a1*X_mid)))**2, color="purple")
        axes[1].plot(X_rig1, E_vals[n-1]+(B*np.cos(k*X_rig1)+C*np.sin(k*X_rig1))**2, color="#800000", label="", linewidth=2.8)
        axes[1].plot(X_rig2, E_vals[n-1]+(D*np.exp(-a0*X_rig2))**2, color="#800000", label="", linewidth=2.8)
        axes[1].fill_between(X_rig2, E_vals[n-1], E_vals[n-1]+(D*np.exp(-a0*X_rig2))**2, color="#3dbb2a")
        axes[1].text(1.25*(L+d/2.0), E_vals[n-1]+0.01*Vo, str1, fontsize=16, color="#800000")

plt.show()

When the boxes are close together, the coupling effect between both boxes is observed. The energy levels of the single finite box split into two levels for the two-box potential: one higher (odd solutions) and one lower in energy (even solutions). The even solution wavefunctions have the unusual result of a probability density of finding the particle inside the $V_1$ barrier (area shaded in cyan) to be larger, while for the odd solutions, the probability of finding the particle between the boxes reaches zero.

Tunneling Probability

The tunneling probability (areas shaded in green in the graphs above) correspond to the area under the probability densities outside both boxes, that is, for $x \geq \frac{d}{2}+L$ and for $x \leq -\frac{d}{2}-L$. It corresponds to:

\[ \dfrac{\displaystyle \int^{-\frac{d}{2}-L}_{-\infty} |\psi(x)|^2\ dx + \displaystyle \int^{+\infty}_{\frac{d}{2}+L} |\psi(x)|^2\ dx }{\displaystyle \int_{-\infty}^{+\infty} |\psi(x)|^2\ dx }\]

It is also interesting to evaluate the probability of finding the particle inside the barrier (area shaded in purple in the cell above), that is, between $-\frac{d}{2} \leq x \leq \frac{d}{2}$. This probability equals to:

\[ \frac{\displaystyle \int_{-\frac{d}{2}}^{\frac{d}{2}} |\psi(x)|^2\ dx}{ \displaystyle \int_{-\infty}^{+\infty} |\psi(x)|^2\ dx }\]

These integrals can be solved analytically (for the even and for the odd solutions). After doing that, the tunneling probability and probability of being inside the barrier for each state is:

import numpy as np

print ("\nThe tunneling probabilities and probabilities of being inside the barrier are:")
for n in range(1,nstates+1):
    k = np.sqrt(E_vals[n-1])*val
    a0 = np.sqrt(Vo-E_vals[n-1])*val
    a1 = np.sqrt(V1-E_vals[n-1])*val
    # Odd wavefunction
    if (n%2==0):
        C = 1.0
        B = f3(E_vals[n-1])*C
        D = np.exp(a0*(L+d/2.0))*(B*np.cos(k*(L+d/2.0))+C*np.sin(k*(L+d/2.0)))
        tunn_prob = D*D*np.exp(-a0*(2.0*L+d))/(2.0*a0)
        total_prob = tunn_prob
        if (d>0.0):
            A = (B*np.cos(k*d/2.0)+C*np.sin(k*d/2.0))/(-np.exp(-a1*d/2.0)+np.exp(a1*d/2.0))
            barr_prob = A*A*(np.sinh(a1*d)/a1-d)
            total_prob += barr_prob
        else:
            barr_prob = 0.0
        total_prob += (B*B*(np.sin(k*(2.0*L+d))+2.0*L*k-np.sin(k*d))+2.0*B*C*(np.cos(k*d)-np.cos(k*(2.0*L+d)))+C*C*(-np.sin(k*(2.0*L+d))+2.0*L*k+np.sin(k*d)))/(4.0*k)
    # Even wavefunction
    else:
        B = 1.0
        C = f1(E_vals[n-1])*B
        A = (B*np.cos(k*d/2.0)+C*np.sin(k*d/2.0))/(np.exp(-a1*d/2.0)+np.exp(a1*d/2.0))
        D = np.exp(a0*(L+d/2.0))*(B*np.cos(k*(L+d/2.0))+C*np.sin(k*(L+d/2.0)))
        barr_prob = A*A*(np.sinh(a1*d)/a1+d)
        tunn_prob = D*D*np.exp(-a0*(2.0*L+d))/(2.0*a0)
        total_prob = barr_prob + tunn_prob
        total_prob += (B*B*(np.sin(k*(2.0*L+d))+2.0*L*k-np.sin(k*d))+2.0*B*C*(np.cos(k*d)-np.cos(k*(2.0*L+d)))+C*C*(-np.sin(k*(2.0*L+d))+2.0*L*k+np.sin(k*d)))/(4.0*k)
    print ("  State  n=%3d   tunneling probability = %5.2f%%, barrier probability = %5.2f%%" % (n,100*tunn_prob/total_prob,100*barr_prob/total_prob))

See how low the probability of finding the particle inside the barrier is for odd wavefunctions (even values of $n$)

Search

Text Color

Text Size

Margin Size

Font Type
