    Objectives

    After completing this section, you should be able to

    1. state the approximate chemical shift (δ) for the following types of protons:
      1. aromatic.
      2. vinylic.
      3. those bonded to carbon atoms which are in turn bonded to a highly electronegative element.
      4. those bonded to carbons which are next to unsaturated centres.
      5. those bonded to carbons which are part of a saturated system.
    2. predict the approximate chemical shifts of each of the protons in an organic compound, given its structure and a table of chemical shift correlations.
    Study Notes

    You should not attempt to memorize the chemical shifts listed in the table of this section, although it is probable that you will need to refer to it quite frequently throughout the remainder of this course. To fulfil Objective 1, above, you should be familiar with the information presented in the figure of chemical shift ranges for organic compounds. If you have an approximate idea of the chemical shifts of some of the most common types of protons, you will find the interpretation of 1H NMR spectra less arduous than it might otherwise be. Notice that we shall not try to understand why aromatic protons are deshielded or why alkynyl protons are not deshielded as much as vinylic protons. These phenonomena can be explained, but the focus is on the interpretation of 1H NMR spectra, not on the underlying theory.

    1H NMR Chemical Shifts

    Chemical shift is associated with the Larmor frequency of a nuclear spin to its chemical environment. Tetramethylsilan[TMS;(CH3)4Si] is generally used for standard to determine chemical shift of compounds: δTMS=0ppm. In other words, frequencies for chemicals are measured for a 1H or 13C nucleus of a sample from the 1H or 13C resonance of TMS. It is important to understand trend of chemical shift in terms of NMR interpretation. The proton NMR chemical shift is affect by nearness to electronegative atoms (O, N, halogen.) and unsaturated groups (C=C,C=O, aromatic). Electronegative groups move to the down field (left; increase in ppm). Unsaturated groups shift to downfield (left) when affecting nucleus is in the plane of the unsaturation, but reverse shift takes place in the regions above and below this plane. 1H chemical shift play a role in identifying many functional groups. Figure 1. indicates important example to figure out the functional groups.

    Figure 1. 1H chemical shift ranges for organic compounds

    Chemical shift values are in parts per million (ppm) relative to tetramethylsilane.

    Hydrogen type Chemical shift (ppm)
    RCH3 0.9 - 1.0
    RCH2R 1.2 - 1.7
    R3CH 1.5 – 2.0
      2.0 – 2.3
    image003.png 1.5 – 1.8
    RNH2 1 - 3
    ArCH3 2.2 – 2.4
    image005.png 2.3 – 3.0
    ROCH3 3.7 – 3.9
    image009.png 3.7 – 3.9
    ROH 1 - 5
    image011.png 3.7 – 6.5
    image013.png 5 - 9
    ArH 6.0 – 8.7
    image015.png 9.5 – 10.0
    image017.png 10 - 13

    Exercises

    Exercise \(\PageIndex{1}\)

    The following have one H1 NMR peak. Predict where these peaks would be in a spectra. (MAY not be exact, but will be close)


    Answer

    A. 5.20 δ

    B. 1.50 δ

    C. 6.40 δ

    D. 1.00 δ

    Exercise \(\PageIndex{2}\)

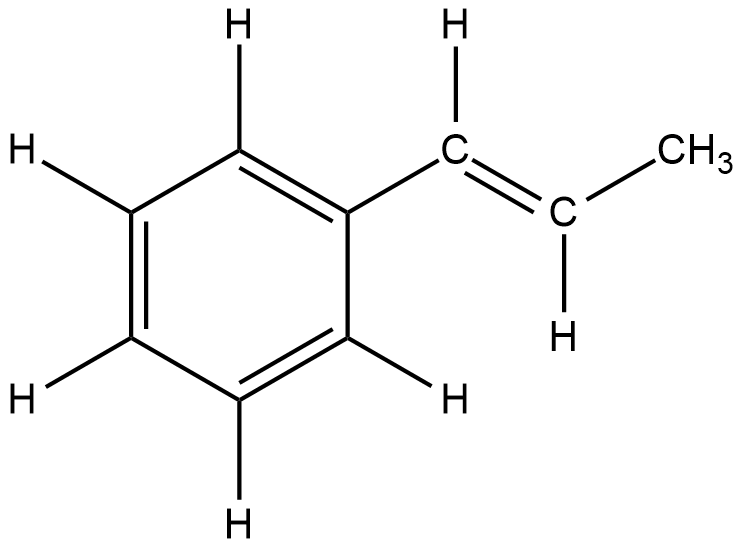

    Identify the different protons in the following molecule and predict where they would be on a chemical spectrum.


    Answer

    There are 6 different protons in this molecule

    The shifts are (close) to the following: a. 2 δ; b. 6 δ; c. 6.5 δ; d. 7 δ; e. 7.5 δ; f. 7 δ
