    Key points:

    • Units are especially important to pay attention to in this lab.
    • We will be comparing your experimental Planck's constant with the actual literature value 6.63E-34.

    Summarized Procedure:

    1. Obtain the wavelength and band gap of six different LEDs using a simple spectroscope and oscilloscope, respectively.
    2. For each wavelength, take the inverse of it and change the units from cm-1 to m-1. For each recorded band gap, convert the units from eV to Joules.
    3. Make 2 graphs. The first is energy (eV) vs. the inverse of wavelength in cm-1. The second is energy (Joules) vs. the inverse of wavelength in m-1.
    4. The slope and y-intercept values of each graph's line of best fit and the values' respective standard deviations will be automatically calculated.
    5. Using the slope from the energy (J) vs. inverse of wavelength (m-1), the experimental value of Planck's constant (J*s) can then be found.

    Calculations:

    The main formula that is used in this is Planck's Constant (h) = \( \frac{\lambda E_{g} }{299792458} \). \(\lambda E_{g} \) is found obtained from the graphs. 299792458 is the speed of light in meters per second.

    Making the Graphs:

    Example Graph https://docs.google.com/spreadsheets...f=true&sd=true

    Student Graph

    (MAKE A COPY OF THIS, FILL IT OUT WITH YOUR DATA TO MAKE YOUR GRAPHS)

    		 https://docs.google.com/spreadsheets...f=true&sd=true

    Procedure for Graphs:







    1. Click "Student Garph" link above.
    2. Click "File" then "Make a Copy.
    3. Following the instructions on YOUR BLANK COPY, add your experimental data obtained from the lab into the YELLOW HIGHLIGHTED BOXES. The rest of the sheet is set to run the calculations for you. Do NOT adjust the other parts. If you do, you can go back to the original and obtain the necessary functions to fix it.
    4. The output part below your data input has data that is used in the calculations. Do not edit this part of the sheet.

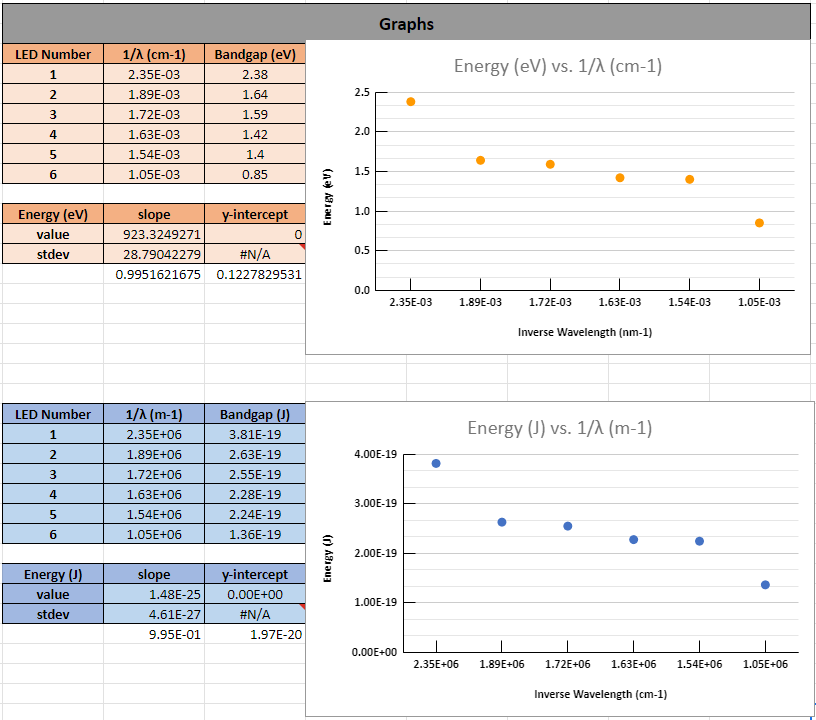

    5. Your graphs will automatically show up in this part of the sheet. The colors of the lines and dots on the graph are coordinated with the results on the left side. On the left, you will find the points that have been graphed. Also displayed will be its slope, y-intercept, and standard deviations. The #N/A is correct as there is no standard deviation for the y-intercept. Again, do not edit this part of the sheet.
    6. Here are your results for the lab! The experimental value is found using the slope of the Energy (J) vs. inverse of wavelength (m-1).
