- Describe the characteristic features of the proton NMR spectra of alcohols and phenols.
- Explain how deuterium oxide (D2O) can be used to assist in the identification of the signal caused by the presence of the O-H proton in the 1H NMR spectrum of an alcohol.
- Predict the general form (i.e., number of peaks, approximate chemical shifts, and splitting pattern) of the proton NMR of a given alcohol or phenol.
- Predict the general form (i.e., number of peaks, and approximate chemical shifts) of the Carbon NMR of a given alcohol or phenol
Determining the Position of an -OH Peak in 1H NMR
Aliphatic Alcohols
Alcohols also show characteristic absorptions in the 1H NMR spectrum. Hydrogens on the oxygen-bearing carbon atom are deshielded by the electron-withdrawing effect of the nearby oxygen, and their absorptions occur in the range 3.4 to 4.5 δ. Spin–spin splitting, however, is not usually observed between the O–H proton of an alcohol and the neighboring protons on carbon. Most samples contain small amounts of acidic impurities, which catalyze an exchange of the O–H proton on a timescale so rapid that the effect of spin–spin splitting is removed. It’s often possible to take advantage of this rapid proton exchange to identify the position of the O–H absorption. If a small amount of deuterated water, D2O, is added to an NMR sample tube, the O–H proton is rapidly exchanged for deuterium, and the hydroxyl absorption disappears from the spectrum.

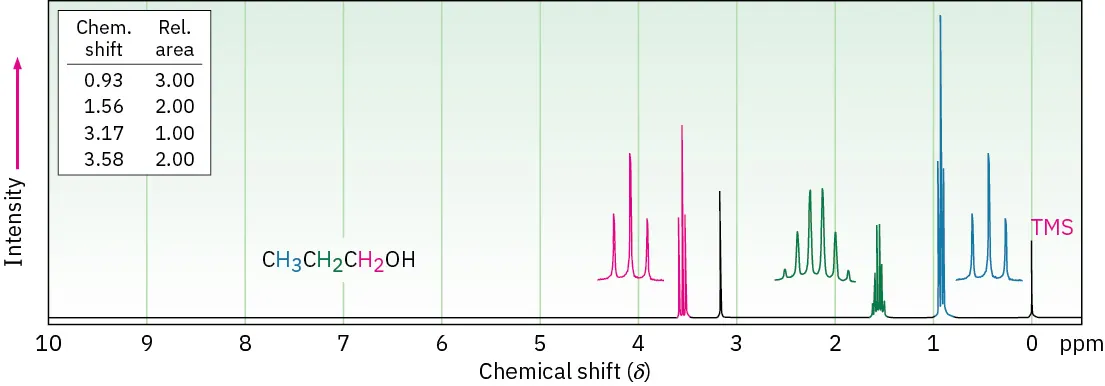

Typical spin–spin splitting is observed between protons on the oxygen-bearing carbon and other neighbors. For example, the signal of the two –CH2O– protons in 1-propanol is split into a triplet by coupling with the neighboring –CH2– protons (Figure \(\PageIndex{1}\)).
Aromatic Alcohols, Phenols
Phenols, like all aromatic compounds, show 1H NMR absorptions near 6.5 to 8 δ, the expected position for aromatic-ring protons. These peaks will exhibit splitting typical of aromatic protons. The protons directly attached to the alcohol oxygen of phenols appear in the region of 3 to 8 δ. These peaks tend to appear as short, broad singlets, similar to other alcohols. In neither case are these absorptions uniquely diagnostic for phenols, since other kinds of protons absorb in the same range.
Exercises
When the 1H NMR spectrum of an alcohol is run in dimethyl sulfoxide (DMSO) solvent rather than in chloroform, exchange of the O–H proton is slow and spin–spin splitting is seen between the O–H proton and C–H protons on the adjacent carbon. What spin multiplicities would you expect for the hydroxyl protons in the following alcohols?
- 2-Methyl-2-propanol
- Cyclohexanol
- Ethanol
- 2-Propanol
- Cholesterol
- 1-Methylcyclohexanol
- Answer
-
- Singlet
- Doublet
- Triplet
- Doublet
- Doublet
- Singlet
Determining the Position of a C-OH in 13C NMR
Aliphatic Alcohols
Carbon atoms bonded to electron-withdrawing –OH groups are deshielded and appear at a lower field in the 13C NMR spectrum than do typical alkane carbons. Most alcohol carbon absorptions fall in the range 50 to 70 δ, as shown in the following drawing for cyclohexanol:
- While carbons adjacent to the alcohol oxygen appear in the distinctive region of 50-70 ppm in the 13C NMR spectrum, carbons at a two-bond distance show a softer deshielding effect and appear at slightly lower fields.
Aromatic Alcohols, Phenols
- Due to the electronegative oxygen, the aromatic carbon attached to the -OH group is shifted downfield to 155 ppm.
- The other carbons in the phenol ring appear in the region typical for aromatic carbons of 125-150 ppm.
