14.6: ¹H NMR Signal Integration and Splitting

Integration of Signal Areas

Signal integration in NMR (Nuclear Magnetic Resonance) spectroscopy is crucial for quantifying the relative number of nuclei contributing to each signal in the spectrum. This process involves measuring the area under each peak in the NMR spectrum, which directly correlates to the abundance of the corresponding nuclei in the sample.

The computer in the NMR instrument can be instructed to mathematically integrate the area under a signal or group of signals. The signal integration process is very useful in ¹H NMR spectrum, because the area under a signal is proportional to the number of protons to which the signal corresponds.

As an example, methyl acetate, the Ha and H_b peaks would integrate to approximately the same area, because they both correspond to a set of three equivalent protons.

Now, take a look at the spectrum of para-xylene (IUPAC name 1,4-dimethylbenzene). The Figure \(\PageIndex{1}\) is the ¹H NMR spectrum of 1,4-dimethylbenzene with integration line (blue lines). The integration line generated by the computer is always in a curved shape that resembles steps. The integration numbers are also generated by the computer together with the curve, which shows the relative area of each signal.

Figure \(\PageIndex{1}\): The 1H NMR spectrum of 1,4-dimethylbenzene with integration



As we discussed earlier, the molecule of 1,4-dimethylbenzene has two sets of equivalent protons: the four aromatic (H_a) protons and the six methyl (H_b) protons. The integration of the area under the peak at 2.6 ppm is 1.5 times greater than the area under the peak at 7.4 ppm. Please note that the integration number show the relative ratio of the number of protons, not the actual number. The ratio 1.5 to 1 here matches the ratio of the actual numbers 6 to 4. This integration information, along with the chemical shift knowledge we have learned before, allows us to assign the peaks: the peak at 7.4 ppm corresponds to protons (Ha) on the benzene ring, and the peak at 2.6 ppm corresponds to two methyl groups (Hb).





Signal Splitting (Coupling)

In the ¹H NMR spectra that we have seen so far, each set of protons generates a single NMR signal. This is not that common for ¹HNMR actually. In fact, the 1H NMR spectra of most organic molecules contain signals that are ‘split’ into two or more peaks, which is called splitting (or coupling). The spectra with peak splitting may look more complicated; however, this splitting behavior provides very useful information about the structure of a compound.

Let’s consider the spectrum for 1,1,2-trichloroethane (Figure \(\PageIndex{2}\)). In this and in other spectra to follow, the expansions of individual signals are shown so that the signal splitting patterns are recognizable.

Figure \(\PageIndex{2}\): The 1H NMR spectrum of 1,1,2-trichloroethane with signal splitting



The signal at 3.96 ppm, corresponding to the two Ha protons, is split into two peaks of equal height (and area) – this is referred to as a doublet. The Hb signal at 5.76 ppm, on the other hand, is split into three peaks, with the middle peak higher than the two outside peaks and the integration ratio between the three peaks is 1:2:1, such splitting signal is called a triplet.

Signal splitting is caused by spin-spin coupling, a term that describes the magnetic interactions between non-equivalent hydrogen atoms that are with 2 or 3 bonds of the hydrogens producing the signal. The nearby protons have a magnetic moment that can be either against or with the external magnetic field, therefore splitting the energy levels of the protons whose signal is being observed, resulting in the splitting of the signal into multiple peaks (the terms ‘splitting’ and ‘coupling’ are often used interchangeably when discussing NMR).

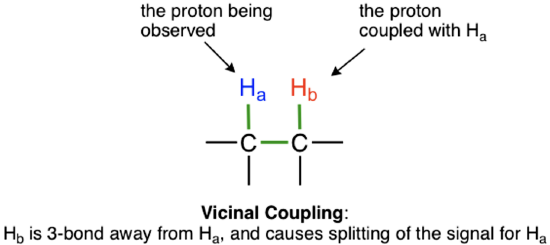

The most typical coupling we observed in this course is from non-equivalent vicinal hydrogens that are 3 bonds away, that is, the hydrogens on adjacent carbons. This is also called vicinal coupling or three-bond coupling.

Figure \(\PageIndex{3}\): Vicinal Coupling

A simple rule that applies for predicting the number of peaks (or splitting pattern) expected from coupling, and the rule in ¹H NMR is:

number of peaks = n + 1

(n is the number of vicinal non-equivalent hydrogens)



We will examine the splitting pattern with different numbers of n:

• When n=0, the signal is a singlet, or has only one peak, as the signals observed in Figure \(\PageIndex{1}\).
• When n=1, the signal is a doublet with two peaks. The area ratio of the two peaks for a doublet is 1:1. The space between the two peaks is called coupling constant, J_ab, measured in Hz.

For the example of compound 1,1,2-trichloromethane, the H_a proton signal fits this situation. With only one vicinal proton, H_b, on the adjacent carbon, the signal of H_a shows as a doublet, as observed in Figure \(\PageIndex{4}\).

Figure \(\PageIndex{4}\): the Ha proton signal of 1,1,2-trichloromethane



• When n=2, the signal is a triplet with three peaks. The three peaks of the triplet have an area ratio of 1:2:1.

In the same compound, 1,1,2-trichloromethane, the signal of the H_b proton fits into this situation. With two vicinal protons, 2 H_a, on the adjacent carbon, the signal of H_b shows as a triplet, as observed in Figure \(\PageIndex{5}\).

Figure \(\PageIndex{5}\): the H_b proton signal of 1,1,2-trichloromethane





• When n=3, the signal is a quartet, which means four peaks. The four peaks of the quartet have the area ratio of 1:3:3:1.

For the spectrum of ethyl acetate (Figure \(\PageIndex{6}\)), the signal of H_b is a quartet, because there are three vicinal protons 3 H_c on the adjacent carbon. Please note that the carbon with H_b connected with oxygen on the other side, and there are no hydrogen atoms on that oxygen atom, so only the coupling with three vicinal protons applies.

Figure \(\PageIndex{6}\): The 1H NMR spectrum of ethyl acetate with signals splitting



• When n≥4, the signal can be called a multiplet. Theoretically, with n increasing, the signal is split into more peaks and the total number of peaks is “n+1”. However, the small peaks on the sides may or may not be able to be observed since they might be merged into noise. The signal with more than four peaks is generally called a multiplet, and it is not that critical to tell exactly how many peaks are involved in a multiplet.

For the spectrum of ethyl acetate (Figure \(\PageIndex{7}\)), the H_c peak in the spectrum of 2-pentanone appears as a sextet, split by the five combined H_b and H_d protons. Technically, this 'sextet' could be considered to be a 'triplet of quartets' with overlapping sub-peaks.

Figure \(\PageIndex{7}\): The 1H NMR spectrum of propyl acetate with signals splitting



Extra notes about signal splitting:

1. Splitting (coupling) only occurs between nonequivalent protons. For equivalent protons, there is no coupling. In the spectrum of succinic acid (Figure \(\PageIndex{8}\)), for example, the protons on the two middle carbons are equivalent (Ha), so there is no coupling between them, and they show a singlet.

Figure \(\PageIndex{8}\): 1H NMR spectrum of succinic acid

2. Protons in OH or NH generally do not couple with vicinal hydrogens. OH and NH protons are acidic enough to rapidly exchange between different molecules, so the neighboring protons never actually ‘feel’ their influence. See the specific example of 1-heptanol spectrum in Figure \(\PageIndex{9}\):

Figure \(\PageIndex{9}\): The ¹H NMR spectrum of 1-heptanol



 ¹H NMR Practice

With the structure of a compound given, we can apply all the knowledge about 1H NMR to assign the signals in the spectrum, that is, to identify which hydrogen(s) a certain signal comes from.

Worked Example \(\PageIndex{1}\): Signal assignment based on the given structure

Match the ¹H NMR spectrum below to its corresponding compound and assign all signals.

a) cyclopentanone b) 3-pentanone c) butaldehyde

d) 2-pentanone e) 4-heptanone f) 1-butene

Approach: It is a good idea to draw the structure of each compound and try to see which matches the spectrum.

The spectrum has four signals: triplet (~0.7 ppm), multiplet (~1.4 ppm), singlet ( ~1.9 ppm) and triplet (~2.2 ppm). Based on the structure of each compound, compounds c), d), and f) should have four signals in the 1H NMR spectrum.

• There are no signals at about 9 ppm for the aldehyde hydrogen in the spectra, so the spectrum is not for compound c), butaldehyde.
• There are no signals at about 4~5 ppm for the alkene hydrogens in the spectra, so the spectrum is not for compound f), 1-butene.
• The signals in the spectrum match what is expected for compound d), 2-pentanone.

Solution: The spectrum is for 2-pentanone.

Structure Determination based on ¹H NMR spectrum

A lot of valuable information about a compound's structure can be obtained from a 1H NMR spectrum. For a summary, analyzing the four features of the spectrum is critical to elucidate the structure of a compound:

• The number of signals indicates how many different sets of protons there are in the molecule;
• The chemical shift of the signal tells us about the electronic environment of each set of protons;
• The integration under each signal provides information about how many protons there are in the set being measured (keep in mind that the integration values are for the ratio, not the actual number of protons);
• The splitting pattern of each signal tells about the number of protons on atoms adjacent to the one whose signal is being measured.

Spin–spin splitting in ¹H NMR can be summarized by three rules:

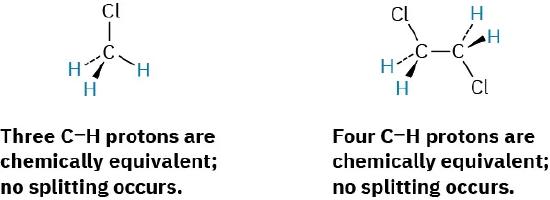

RULE 1 Chemically equivalent protons don’t show spin–spin splitting. Equivalent protons may be on the same carbon or on different carbons, but their signals don’t split.
RULE 2 The signal of a proton with n equivalent neighboring protons is split into a multiplet of n + 1 peaks with coupling constant J. Protons that are farther than two carbon atoms apart don’t usually couple. However, they sometimes show weak coupling when they are separated by a \(\pi\) bond.
RULE 3 Two groups of protons coupled to each other have the same coupling constant, J.



The spectrum of para-methoxypropiophenone in Figure \(\PageIndex{10}\) further illustrates these three rules. The downfield absorptions at 6.91 and 7.93 δ are due to the four aromatic-ring protons. There are two kinds of aromatic protons, each of which gives a signal that is split into a doublet by its neighbor. The –OCH₃ signal is unsplit and appears as a sharp singlet at 3.84 δ. The –CH₂– protons next to the carbonyl group appear at 2.93 δ in the region expected for protons on carbon next to an unsaturated center, and their signal is split into a quartet by coupling with the protons of the neighboring methyl group. The methyl protons appear as a triplet at 1.20 δ in the usual upfield region.



Figure \(\PageIndex{10}\): The ¹H NMR spectrum of para-methoxypropiophenone.



Worked Example \(\PageIndex{1}\): Assigning a Chemical Structure from a 1H NMR Spectrum

Propose a structure for a compound, C₅H₁₂O, that fits the following ¹H NMR data: 0.92 δ (3 H, triplet, J = 7 Hz), 1.20 δ (6 H, singlet), 1.50 δ (2 H, quartet, J = 7 Hz), 1.64 δ (1 H, broad singlet).

Strategy

It’s best to begin solving structural problems by calculating a molecule’s degree of unsaturation. In the present instance, a formula of C₅H₁₂O corresponds to a saturated, open-chain molecule, either an alcohol or an ether.

To interpret the NMR information, let’s look at each absorption individually. The three-proton absorption at 0.92 δ is due to a methyl group in an alkane-like environment, and the triplet-splitting pattern implies that the CH₃ is next to a CH₂. Thus, our molecule contains an ethyl group, CH₃CH₂–. The six-proton singlet at 1.20 δ is due to two equivalent alkane-like methyl groups attached to a carbon with no hydrogens, (CH₃)₂C, and the two-proton quartet at 1.50 δ is due to the CH₂ of the ethyl group. All 5 carbons and 11 of the 12 hydrogens in the molecule are now accounted for. The remaining hydrogen, which appears as a broad one-proton singlet at 1.64 δ, is probably due to an OH group, since there is no other way to account for it. Putting the pieces together gives the structure: 2-methyl-2-butanol.

Solution

 Exercises

Exercise \(\PageIndex{1}\)

Predict the splitting patterns you would expect for each proton in the following molecules:

a.     b.    c.

d.    e.     f.

Answer

1. −CHBr₂, quartet;  −CH₃, doublet
2. CH₃O−, singlet; −OCH₂ −, triplet;  −CH₂Br, triplet
3. ClCH₂− , triplet; −CH₂−, quintet
4. CH₃− , triplet; −CH₂− , quartet; −CH− , septet; (CH₃)₂, doublet
5. CH₃−, triplet; −CH₂−, quartet; −CH−, septet; (CH₃)₂, doublet
6. =CH, triplet,  −CH₂−, doublet, aromatic C−H, two multiplets

Exercise \(\PageIndex{2}\)

Draw structures for compounds that meet the following descriptions:

1. C₂H₆O; one singlet
2. C₃H₇Cl; one doublet and one septet
3. C₄H₈Cl₂O; two triplets
4. C₄H₈O₂; one singlet, one triplet, and one quartet

Answer

1. CH₃OCH₃
2. CH₃CH(Cl)CH₃
3. ClCH₂CH₂OCH₂CH₂Cl
4. CH₃CH₂CO₂CH₃ or CH₃CO₂CH₂CH₃

Exercise \(\PageIndex{3}\)

The integrated ¹H NMR spectrum of a compound of formula C₄H₁₀O is shown below. Propose a structure.

Answer

CH₃CH₂OCH₂CH₃
