2.2: Structure and Nomenclature of Aromatic Compounds

Learning Objectives

• Recognize aromatic compounds from structural formulas.
• Name aromatic compounds given formulas.
• Write formulas for aromatic compounds given their names.

Historically, benzene-like substances were called aromatic hydrocarbons because they had distinctive aromas. Today, an aromatic compound is any compound that contains a benzene ring or has certain benzene-like properties (but not necessarily a strong aroma). You can recognize the aromatic compounds in this text by the presence of one or more benzene rings in their structure. Some representative aromatic compounds and their uses are listed in Table \(\PageIndex{1}\), where the benzene ring is represented as C₆H₅.

Table \(\PageIndex{1}\): Some Representative Aromatic Compounds

Name	Structure	Typical Uses
aniline	C6H5–NH2	starting material for the synthesis of dyes, drugs, resins, varnishes, perfumes; solvent; vulcanizing rubber
benzoic acid	C6H5–COOH	food preservative; starting material for the synthesis of dyes and other organic compounds; curing of tobacco
bromobenzene	C6H5–Br	starting material for the synthesis of many other aromatic compounds; solvent; motor oil additive
nitrobenzene	C6H5–NO2	starting material for the synthesis of aniline; solvent for cellulose nitrate; in soaps and shoe polish
phenol	C6H5–OH	disinfectant; starting material for the synthesis of resins, drugs, and other organic compounds
toluene	C6H5–CH3	solvent; gasoline octane booster; starting material for the synthesis of benzoic acid, benzaldehyde, and many other organic compounds

Example \(\PageIndex{1}\)

Which compounds are aromatic?

1.
2.
3.
4.

Solution

1. The compound has a benzene ring (with a chlorine atom substituted for one of the hydrogen atoms); it is aromatic.
2. The compound is cyclic, but it does not have a benzene ring; it is not aromatic.
3. The compound has a benzene ring (with a propyl group substituted for one of the hydrogen atoms); it is aromatic.
4. The compound is cyclic, but it does not have a benzene ring; it is not aromatic.

Exercise \(\PageIndex{1}\)

Which compounds are aromatic?

1.
2.
3.

In the International Union of Pure and Applied Chemistry (IUPAC) system, aromatic hydrocarbons are named as derivatives of benzene. Figure \(\PageIndex{1}\) shows four examples. In these structures, it is immaterial whether the single substituent is written at the top, side, or bottom of the ring: a hexagon is symmetrical, and therefore all positions are equivalent.

Figure \(\PageIndex{1}\): Some Benzene Derivatives. These compounds are named in the usual way with the group that replaces a hydrogen atom named as a substituent group: Cl as chloro, Br as bromo, I as iodo, NO₂ as nitro, and CH₃CH₂ as ethyl.

Although some compounds are referred to exclusively by IUPAC names, some are more frequently denoted by common names, as is indicated in Table \(\PageIndex{1}\).

When there is more than one substituent, the corners of the hexagon are no longer equivalent, so we must designate the relative positions. There are three possible disubstituted benzenes, and we can use numbers to distinguish them (Figure \(\PageIndex{2}\)). We start numbering at the carbon atom to which one of the groups is attached and count toward the carbon atom that bears the other substituent group by the shortest path.

Figure \(\PageIndex{2}\): The Three Isomeric Dichlorobenzenes

In Figure \(\PageIndex{2}\), common names are also used: the prefix ortho (o-) for 1,2-disubstitution, meta (m-) for 1,3-disubstitution, and para (p-) for 1,4-disubstitution. The substituent names are listed in alphabetical order. The first substituent is given the lowest number. When a common name is used, the carbon atom that bears the group responsible for the name is given the number 1:

Example \(\PageIndex{2}\)

Name each compound using both the common name and the IUPAC name.

1.
2.
3.

Solution

1. The benzene ring has two chlorine atoms (dichloro) in the first and second positions. The compound is o-dichlorobenzene or 1,2-dichlorobenzene.
2. The benzene ring has a methyl (CH₃) group. The compound is therefore named as a derivative of toluene. The bromine atom is on the fourth carbon atom, counting from the methyl group. The compound is p-bromotoluene or 4-bromotoluene.
3. The benzene ring has two nitro (NO₂) groups in the first and third positions. It is m-dinitrobenzene or 1,3-dinitrobenzene.
4. Note: The nitro (NO₂) group is a common substituent in aromatic compounds. Many nitro compounds are explosive, most notably 2,4,6-trinitrotoluene (TNT).

Exercise \(\PageIndex{2}\)

Name each compound using the IUPAC name.

1.
2.
3.

• Sometimes an aromatic group is found as a substituent bonded to a nonaromatic entity or to another aromatic ring. The group of atoms remaining when a hydrogen atom is removed from an aromatic compound is called an aryl group. The most common aryl group is derived from benzene (C₆H₆) by removing one hydrogen atom (C₆H₅) and is called a phenyl group, from pheno, an old name for benzene.

Polycyclic Aromatic Hydrocarbons

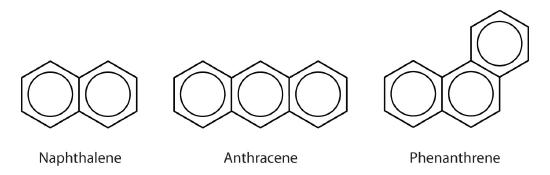

Some common aromatic hydrocarbons consist of fused benzene rings—rings that share a common side. These compounds are called polycyclic aromatic hydrocarbons (PAHs).

The three examples shown here are colorless, crystalline solids generally obtained from coal tar. Naphthalene has a pungent odor and is used in mothballs. Anthracene is used in the manufacture of certain dyes. Steroids, a large group of naturally occurring substances, contain the phenanthrene structure.

To Your Health: Polycyclic Aromatic Hydrocarbons and Cancer

The intense heating required for distilling coal tar results in the formation of PAHs. For many years, it has been known that workers in coal-tar refineries are susceptible to a type of skin cancer known as tar cancer. Investigations have shown that a number of PAHs are carcinogens. One of the most active carcinogenic compounds, benzopyrene, occurs in coal tar and has also been isolated from cigarette smoke, automobile exhaust gases, and charcoal-broiled steaks. It is estimated that more than 1,000 t of benzopyrene are emitted into the air over the United States each year. Only a few milligrams of benzopyrene per kilogram of body weight are required to induce cancer in experimental animals.

Biologically Important Compounds with Benzene Rings

Substances containing the benzene ring are common in both animals and plants, although they are more abundant in the latter. Plants can synthesize the benzene ring from carbon dioxide, water, and inorganic materials. Animals cannot synthesize it, but they are dependent on certain aromatic compounds for survival and therefore must obtain them from food. Phenylalanine, tyrosine, and tryptophan (essential amino acids) and vitamins K, B₂ (riboflavin), and B₉ (folic acid) all contain the benzene ring. Many important drugs, a few of which are shown in Table \(\PageIndex{2}\), also feature a benzene ring.

So far we have studied only aromatic compounds with carbon-containing rings. However, many cyclic compounds have an element other than carbon atoms in the ring. These compounds, called heterocyclic compounds, are discussed later. Some of these are heterocyclic aromatic compounds.

Table \(\PageIndex{2}\): Some Drugs That Contain a Benzene Ring

Name	Structure
aspirin
acetaminophen
ibuprofen
amphetamine
sulfanilamide

Key Takeaway

• Aromatic compounds contain a benzene ring or have certain benzene-like properties; for our purposes, you can recognize aromatic compounds by the presence of one or more benzene rings in their structure.
