- Describe a simple harmonic oscillator.
- Explain the link between simple harmonic motion and waves.

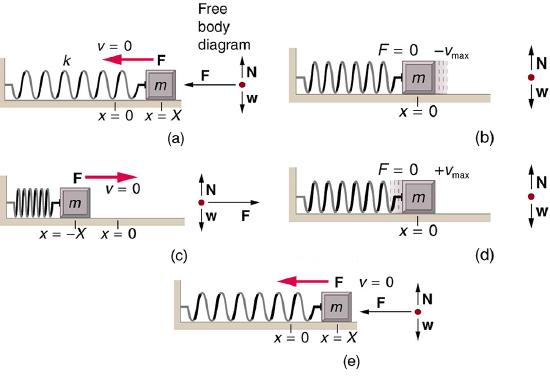

The oscillations of a system in which the net force can be described by Hooke’s law are of special importance, because they are very common. They are also the simplest oscillatory systems. Simple Harmonic Motion (SHM) is the name given to oscillatory motion for a system where the net force can be described by Hooke’s law, and such a system is called a simple harmonic oscillator. If the net force can be described by Hooke’s law and there is no damping (by friction or other non-conservative forces), then a simple harmonic oscillator will oscillate with equal displacement on either side of the equilibrium position, as shown for an object on a spring in Figure \(\PageIndex{1}\). The maximum displacement from equilibrium is called the amplitude \(X\). The units for amplitude and displacement are the same, but depend on the type of oscillation. For the object on the spring, the units of amplitude and displacement are meters; whereas for sound oscillations, they have units of pressure (and other types of oscillations have yet other units). Because amplitude is the maximum displacement, it is related to the energy in the oscillation.
TAKE-HOME EXPERIMENT: SHM AND THE MARBLE
Find a bowl or basin that is shaped like a hemisphere on the inside. Place a marble inside the bowl and tilt the bowl periodically so the marble rolls from the bottom of the bowl to equally high points on the sides of the bowl. Get a feel for the force required to maintain this periodic motion. What is the restoring force and what role does the force you apply play in the simple harmonic motion (SHM) of the marble?
What is so significant about simple harmonic motion? One special thing is that the period \(T\) and frequency \(f\) of a simple harmonic oscillator are independent of amplitude. The string of a guitar, for example, will oscillate with the same frequency whether plucked gently or hard. Because the period is constant, a simple harmonic oscillator can be used as a clock.
The Link between Simple Harmonic Motion and Waves

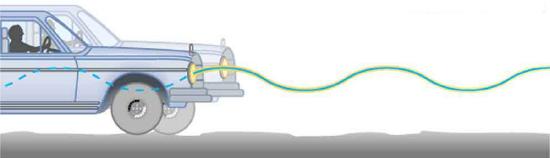

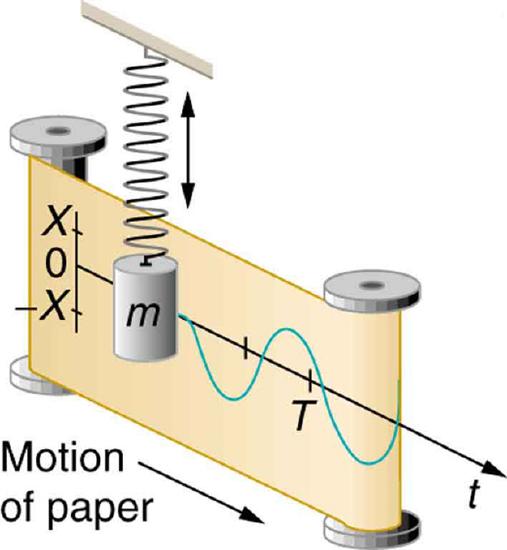

If a time-exposure photograph of the bouncing car were taken as it drove by, the headlight would make a wavelike streak, as shown in Figure \(\PageIndex{2}\). Similarly, Figure \(\PageIndex{3}\) shows an object bouncing on a spring as it leaves a wavelike trace of its position on a moving strip of paper. Both waves are sine functions. All simple harmonic motion is intimately related to sine and cosine waves.
The displacement \(x(t)\), the velocity \(v(t)\), and the acceleration \(a(t)\) of simple harmonic motion sketches out characteristic shapes (called sinusoidal functions) as a function of time. You just need to scale them horizontally and vertically, so that they have correct period and amplitude, respectively.
Figure \(\PageIndex{4}\) shows the simple harmonic motion of an object on a spring and presents graphs of \(x(t)\),\(v(t)\), and \(a(t)\) versus time.
The most important point here is that these relationships are valid for all simple harmonic motion. They are very useful in visualizing waves associated with simple harmonic motion, including visualizing how waves add with one another.
Exercise \(\PageIndex{1}\)
Suppose you pluck a banjo string. You hear a single note that starts out loud and slowly quiets over time. Describe what happens to the sound waves in terms of period, frequency and amplitude as the sound decreases in volume.
- Answer
-
Frequency and period remain essentially unchanged. Only amplitude decreases as volume decreases.
Exercise \(\PageIndex{2}\)
A babysitter is pushing a child on a swing. At the point where the swing reaches \(x\), where would the corresponding point on a wave of this motion be located?
- Answer
-
\(x\) is the maximum deformation, which corresponds to the amplitude of the wave. The point on the wave would either be at the very top or the very bottom of the curve.
Section Summary
- Simple harmonic motion is oscillatory motion for a system that can be described only by Hooke’s law. Such a system is also called a simple harmonic oscillator.
- Displacement, velocity, and acceleration in simple harmonic motion as a function of time are represented by sinusoidal functions in time, that is functions that are similar to \(\sin (t)\) and \(\cos (t)\).
Glossary
- amplitude
- the maximum displacement from the equilibrium position of an object oscillating around the equilibrium position
- simple harmonic motion
- the oscillatory motion in a system where the net force can be described by Hooke’s law
- simple harmonic oscillator
- a device that implements Hooke’s law, such as a mass that is attached to a spring, with the other end of the spring being connected to a rigid support such as a wall
