The lowest-energy arrangement, or ground-state electron configuration, of an atom is a list of the orbitals occupied by its electrons. We can predict this arrangement by following three rules.

RULE 1

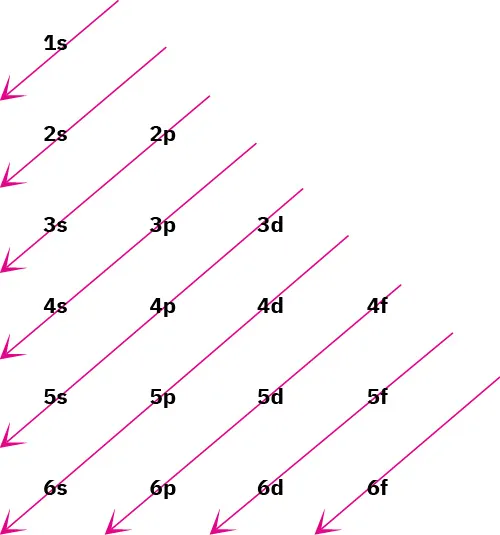

The lowest-energy orbitals fill up first, $1 s \to 2 s \to 2 p \to 3 s \to 3 p \to 4 s \to$ 3d, according to the following graphic, a statement called the Aufbau principle. Note that the 4s orbital lies between the 3p and 3d orbitals in energy.

The orbital arrangement featuring orbitals in order 1s; 2s; 2p-3s; 3p-4s; 3d-4p-5s; 4d-5p-6s; 4f-5d-6p; 5f-6d; and 6f. Arrows denote the order in which orbitals are filled with electrons.

RULE 2

Electrons act in some ways as if they were spinning around an axis, somewhat as the earth spins. This spin can have two orientations, denoted as up (↑) and down (↓). Only two electrons can occupy an orbital, and they must have opposite spins, a statement called the Pauli exclusion principle.

RULE 3

If two or more empty orbitals of equal energy are available, one electron occupies each with spins parallel until all orbitals are half-full, a statement called Hund’s rule.

Some examples of how these rules apply are shown in Table $\PageIndex{1}$. Hydrogen, for instance, has only one electron, which must occupy the lowest-energy orbital. Thus, hydrogen has a 1s ground-state configuration. Carbon has six electrons and the ground-state configuration 1s²2s²2p_x¹2p_y¹, and so forth. Note that a superscript is used to represent the number of electrons in a particular orbital.

Table $\PageIndex{1}$: Ground-State Electron Configurations of Some Elements
Element	Atomic number	Configuration
Hydrogen	1
Carbon	6
Phosphorus	15

Exercise $\PageIndex{1}$

What is the ground-state electron configuration of each of the following elements:

Oxygen
Nitrogen
Sulfur

Answer

1s² 2s² 2p⁴
1s² 2s² 2p³
1s² 2s² 2p⁶ 3s² 3p⁴

Exercise $\PageIndex{2}$

How many electrons does each of the following biological trace elements have in its outermost electron shell?

Magnesium
Cobalt
Selenium

Answer
