# 21.7A: Chromium Metal


Discovered in 1797 by the French chemist Louis Nicolas Vauquelin, it was named chromium (Greek chroma, "color") because of the many different colors characteristic of its compounds. Chromium is the earth's 21st most abundant element (about 122 ppm) and the 6th most abundant transition metal. The principal and commercially viable ore is chromite, $$\ce{FeCr2O4}$$, which is found mainly in southern Africa (with 96% of the worlds reserves), the former U.S.S.R and the Philippines. Less common sources include crocoite, $$\ce{PbCrO4}$$, and chrome ochre, $$\ce{Cr2O3}$$, while the gemstones emerald and ruby owe their colors to traces of chromium.

## Extraction

Chromite ($$\ce{FeCr2O4}$$) is the most commercially useful ore, and is extensively used for extraction of chromium. Chromium is produced in two forms:

1. Ferrochrome by the reduction of chromite with coke in an electric arc furnace. A low-carbon ferrochrome can be produced by using ferrosilicon instead of coke as the reductant. This iron/chromium alloy is used directly as an additive to produce chromium-steels which are "stainless" and hard.
2. Chromium metal by the reduction of Cr2O3. This is obtained by aerial oxidation of chromite in molten alkali to give sodium chromate, Na2CrO4, which is leached out with water, precipitated and then reduced to the Cr(III) oxide by carbon. The oxide can be reduced by aluminum (aluminothermic process) or silicon:

$\ce{Cr_2O_3 + 2Al \rightarrow 2Cr + Al_2O_3}$

$\ce{2Cr_2O_3 + 3Si \rightarrow 4Cr + 3SiO_2}$

The main use of the chromium metal so produced is in the production of nonferrous alloys, the use of pure chromium being limited because of its low ductility at ordinary temperatures. Alternatively, the Cr2O3 can be dissolved in sulfuric acid to give the electrolyte used to produce the ubiquitous chromium-plating which is at once both protective and decorative. The sodium chromate produced in the isolation of chromium is itself the basis for the manufacture of all industrially important chromium chemicals. World production of chromite ores approached 12 million tonnes in 1995.

## Chromium Compounds

Most compounds of chromium are colored (why is Cr(CO)6 white?); the most important are the chromates and dichromates of sodium and potassium and the potassium and ammonium chrome alums. The dichromates are used as oxidizing agents in quantitative analysis, also in tanning leather. Other compounds are of industrial value; lead chromate is chrome yellow, a valued pigment. Chromium compounds are used in the textile industry as mordants, and by the aircraft and other industries for anodizing aluminium.

## Halides

CrX3 are prepared from Cr with X2, dehydration of CrCl3.6H2O requires SOCl2 at 650C.

Table 1: Chromium(III) halides
Formula Color MP M-X (pm) μ(BM) (b) Structure
CrF3 green 1404 190 - -
CrCl3 red-violet 1152 238 - CrCl3
CrBr3 green-black 1130 257 - BiI3
CrI3 black >500decomp - - -

(b) all 3.7-4.1 BM.

Reduction of CrX3 with H2/HX gives CrX2.

Table 2: Chromium(II) halides
Formula Color MP μ (BM) Structure
CrF2 green 894 4.3 distorted rutile
CrCl2 white 820-824 5.13 distorted rutile
CrBr2 white 844 - -
CrI2 red-brown 868 - -

## Oxides

Table 3: Chromium oxides
Formula Color Oxidation State MP Magnetic Moment
CrO3 deep red Cr6+ 197decomp -
Cr3O8 - intermediate - -
Cr2O5 - - - -
Cr5O12 etc - - - -
CrO2 brown-black Cr4+ 300decomp -
Cr2O3 green Cr3+ 2437 -antiferromagnetic < 35 C

Dichromate and chromate equilibria is pH dependent:

$\ce{HCrO4- → CrO42- + H+ } \,\, K=10^{-5.9}$

H2CrO4 → HCrO4- + H+ K=10+0.26

Cr2O72- + H2O → 2HCrO4- K=10-2.2
HCr2O7- → Cr2O72- + H+ K=10+0.85

Hence the variation found for solutions of CrO3 are:

• pH > 8 CrO42- yellow
• pH 2-6 HCrO4- and Cr2O72- orange-red
• pH < 1 H2Cr2O7

One of the most obvious characteristics of Cr(III) is that it is acidic i.e it has a tendency to hydrolyse and form polynuclear complexes containing OH- bridges in a process known as OLATION. This is thought to occur by the loss of a proton from coordinated water, followed by coordination of the OH- to a second cation:

[Cr(H2O)6]3+ → [Cr(H2O)5(OH)]2+

H
O
/ \
[(H2O)4Cr Cr(H2O)4]4+ pK=4 etc.
\ /
O
H

The ease with which the proton is removed can be judged by the fact that the hexaaquo ion (pKa ~ 4) is almost as strong as acetic acid. Further deprotonation and polymerization can occur and, as the pH is raised, the final product is hydrated chromium(III) oxide or "chromic hydroxide".

## Representative Complexes

The Chromium(III) ion forms many stable complexes and since they are inert are capable of exhibiting various types of isomerism.

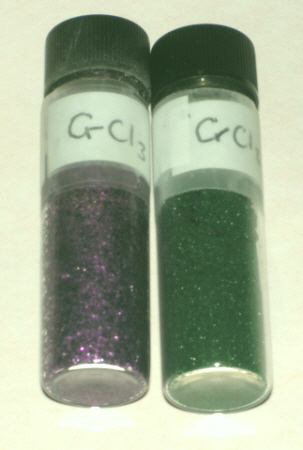

anhydrous CrCl3 and hydrated "CrCl3.6H2O",

Hydrated chromium chloride, "CrCl3.6H2O", exists as hydrate isomers, including:

• the violet [Cr(H2O)6]Cl3
• the dark green trans-[CrCl2(H2O)4]Cl.2H2O salt shown above, etc.
• the pale green [CrCl(H2O)5]Cl2.H2O

Anhydrous CrCl3 reacts with pyridine only in the presence of Zinc powder. This allows a small amount of the Cr(II) ion to be formed, which is very labile but unstable with respect to oxidation back to Cr(III).

$CrCl_3 + pyr/Zn \rightarrow CrCl_3pyr_3$

See the laboratory manual for this course for a range of other Cr(III) complexes for which you should know the structure.

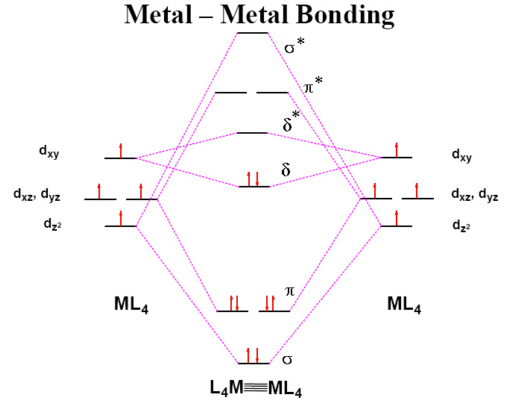

[Cr2(OAc)4].2H2O is an example of a Cr(II) complex which is reasonably stable in air once isolated. Each Cr(II) ion has 4 d electrons but the complex is found to be diamagnetic which is explained by the formation of a quadruple bond between the two metal ions. The Cr-Cr bond distance in a range of these quadruply bonded species has been found to vary between 195-255 pm.

Cr(II) acetate complex.
In case you think that quadruple bonds are as far as it goes.... a recent report describes the structure of a Cr complex with a quintuple bond between two Cr(I) ions.

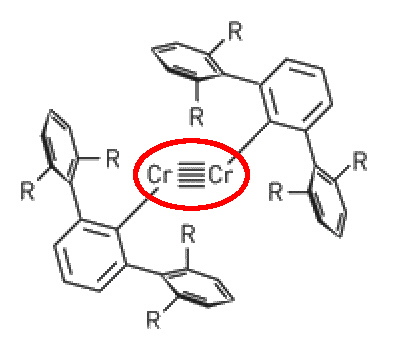

Cr(I) - Cr(I) quintuple bonded structure.
The compound Ar'CrCrAr' (R = isopropyl) was very air and moisture sensitive and crystallised as dark red crystals. X-ray diffraction revealed a Cr-Cr bond length of about 184 pm and a planar, trans-bent core geometry. Published in Science by P Power et. al., UC Davis, 22 September 2005 [DOI: 10.1126/science.1116789].

Another recent innovation is the formation of "zeolite-type" architectures from Metal-Organic-Frameworks (MOF's). The synthesis of MIL-101 consists of the hydrothermal reaction of 1,4-benzene dicarboxylate, H2BDC (166 mg, 1 mmol) with Cr(NO3)3.9H2O (400 mg, 1 mmol), hydrofluoric acid (1 mmol), and 4.8 mL of H2O (265 mmol) for 8 h at 220 °C, producing a pure and highly crystallized green powder of the chromium terephthalate with formula Cr3F(H2O)2O[(O2C)-C6H4-(CO2)]3.nH2O (n=25), based on chemical analysis.

MIL 101 Chromium MOF structure. "First Direct Imaging of Giant Pores of the Metal-Organic Framework MIL-101" Millange and co-workers Chem. Mater. 2005, 17, 6525-6527

## Uses

More than half the production of chromium goes into metallic products, and about another third is used in refractories. It is an ingredient in several important catalysts. The chief use of chromium is to form alloys with iron, nickel, or cobalt. The addition of chromium imparts hardness, strength, and corrosion resistance to the alloy. In the stainless steels, chromium makes up 10 percent or more of the final composition. Because of its hardness, an alloy of chromium, cobalt, and tungsten is used for high-speed metal-cutting tools. When deposited electrolytically, chromium provides a hard, corrosion-resistant, lustrous finish. For this reason it is widely used as body trim on automobiles and other vehicles. The extensive use of chromite as a refractory is based on its high melting point, its moderate thermal expansion, and the stability of its crystalline structure.

In chromites and chromic salts, chromium has a valence of +3. Most of these compounds are green, but some are red or blue. Chromic oxide (Cr2O3) is a green solid. In chromates and dichromates, chromium has a valence of +6. Potassium dichromate (K2Cr2O7) is a red, water-soluble solid that, mixed with gelatin, gives a light-sensitive surface useful in photographic processes. The chromates are generally yellow, the best known being lead chromate (PbCrO4), an insoluble solid widely used as a pigment called chrome yellow. Chrome green is a mixture of chrome yellow and Prussian blue.

Chromium is used to harden steel, to manufacture stainless steel, and to form many useful alloys. Much is used in plating to produce a hard, beautiful surface and to prevent corrosion. Chromium gives glass an emerald green color and is widely used as a catalyst. The refractory industry has found chromite useful for forming bricks and shapes, as it has a high melting point, moderate thermal expansion, and stability of crystalline structure.

## Health

Chromium is an essential trace element in mammalian metabolism. In addition to insulin, it is responsible for reducing blood glucose levels, and is used to control certain cases of diabetes. It has also been found to reduce blood cholesterol levels by diminishing the concentration of (bad) low density lipoproteins "LDLs" in the blood. It is supplied in a variety of foods such as Brewer's yeast, liver, cheese, whole grain breads and cereals, and broccoli. It is claimed to aid in muscle development, and as such dietary supplements containing chromium picolinate (its most soluble form), is very popular with body builders.

mer- isomer of Cr(III) picolinate complex.
Ammonium Reineckate, NH4(Cr(NH3)2(SCN)4).H 2O, is used to test for the presence of dihydromorphinone and other substances generally found in persons involved in substance abuse.

## References

1. "Inorganic Chemistry", 3rd Edition, Catherine Housecroft, Alan G. Sharpe, Publisher: Prentice Hall
2. "Complexes and First-Row Transition Elements", D. Nicholls
3. "Basic Inorganic Chemistry", F.A. Cotton, G. Wilkinson and P.L. Gaus
4. "Advanced Inorganic Chemistry", F.A. Cotton, G. Wilkinson, C. A. Murillo, and M. Bochmann
5. "Chemistry of the Elements", Greenwood and Earnshaw
6. "Hydrolysis of Cations", Baes and Messmer
