13.3: The Equilibrium Constant

  • Page ID
  • \( \newcommand{\vecs}[1]{\overset { \scriptstyle \rightharpoonup} {\mathbf{#1}} } \) \( \newcommand{\vecd}[1]{\overset{-\!-\!\rightharpoonup}{\vphantom{a}\smash {#1}}} \)\(\newcommand{\id}{\mathrm{id}}\) \( \newcommand{\Span}{\mathrm{span}}\) \( \newcommand{\kernel}{\mathrm{null}\,}\) \( \newcommand{\range}{\mathrm{range}\,}\) \( \newcommand{\RealPart}{\mathrm{Re}}\) \( \newcommand{\ImaginaryPart}{\mathrm{Im}}\) \( \newcommand{\Argument}{\mathrm{Arg}}\) \( \newcommand{\norm}[1]{\| #1 \|}\) \( \newcommand{\inner}[2]{\langle #1, #2 \rangle}\) \( \newcommand{\Span}{\mathrm{span}}\) \(\newcommand{\id}{\mathrm{id}}\) \( \newcommand{\Span}{\mathrm{span}}\) \( \newcommand{\kernel}{\mathrm{null}\,}\) \( \newcommand{\range}{\mathrm{range}\,}\) \( \newcommand{\RealPart}{\mathrm{Re}}\) \( \newcommand{\ImaginaryPart}{\mathrm{Im}}\) \( \newcommand{\Argument}{\mathrm{Arg}}\) \( \newcommand{\norm}[1]{\| #1 \|}\) \( \newcommand{\inner}[2]{\langle #1, #2 \rangle}\) \( \newcommand{\Span}{\mathrm{span}}\)\(\newcommand{\AA}{\unicode[.8,0]{x212B}}\)

    The constancy of the ratio of the equilibrium concentration of one isomer to the concentration of the other at a given temperature is characteristic of all gaseous equilibria between isomers, i.e.,of all reactions of the general type

    \[\text{A}\text{ }({g})\rightleftharpoons \text{B}\text{ }({g})\label{1} \]

    The constant ratio of concentrations is called the equilibrium constant and is given the symbol \(K_c\). For reactions of the type given by Equation \(\ref{1}\) the equilibrium constant is thus described by the equation

    \[K_{c}=\frac{[\text{ B }]}{[\text{ A }]}\label{2} \]

    where, by convention, the concentration of the product B appears in the numerator of the ratio. If, for some reason, we wish to look at this reaction in reverse,

    \[\text{B}\text{ }({g})\rightleftharpoons \text{A}\text{ }({g}) \nonumber \]

    then the equilibrium constant is denoted as the reciprocal of the constant given in Equation \(\ref{2}\).

    \[K_{c}=\frac{[\text{ A }]}{[\text{ B }]} \nonumber \]

    In general the equilibrium constant \(K_c\) varies with temperature and also differs based on the substances involved. Examples illustrating this behavior are given in Table \(\PageIndex{1}\) where the experimentally determined equilibrium constants for various cis-trans isomerization equilibria are recorded at various temperatures. Note that the equilibrium changes as the temperature and the composition of the molecule changes.

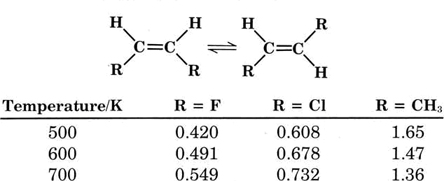

    TABLE \(\PageIndex{1}\) The Equilibrium Constant Kc for some Cis-Trans Interconversions.


    When we turn our attention to more complex equilibrium reactions, we find that the relationship between the concentrations of the various species is no longer a simple ratio. A good demonstration of this fact is provided by the dissociation of dinitrogen tetroxide, N2O4. This compound is a colorless gas, but even at room temperature it dissociates partly into a vivid red-brown gas, NO2, according to the equation

    \[\text{N}_{2}\text{O}_{4}\text{ }({g})\rightleftharpoons \text{2NO}_{2} \text{ }({g})\label{5} \]


    If 1 mol N2O4 contained in a flask of volume 1 L is heated to 407.2 K, exactly one-half of it dissociates into NO2. If the volume is now increased, the ratio of [NO2] to [N2O4] does not remain constant but increases as more dissociates. As shown in Table \(\PageIndex{2}\) , if we increase the volume still further, even more dissociation occurs. By the time we have increased the volume to 10 L, the fraction of N2O4 molecules dissociated has increased to 0.854 (i.e., to 85.4 percent).

    Obviously the situation is now not quite so straightforward as in the previous example. Nevertheless there is a simple relationship between the equilibrium concentrations of the reactant and product in this case too. We find that it is the quantity

    \[\frac{[\text{ NO}_{2}]^{2}}{[\text{ N}_{2}\text{O}_{4}]} \nonumber \]

    rather than the simple ratio of concentrations, which is now constant. Accordingly we also call this quantity an equilibrium constant and give it the symbol Kc. Thus Kc for Equation \(\ref{5}\) is given by the relationship

    \[K_{c}=\frac{[\text{ NO}_{2}]^{2}}{[\text{ N}_{2}\text{O}_{4}]} \nonumber \]

    where again by convention the product appears in the numerator. It is easy to check that Kc actually is a constant quantity with the value 2.00 mol/L from the data given in Table \(\PageIndex{2}\) . Thus if we take the result from line d, we find that when 1 mol N2O4 is placed in a 10 L flask at 407 K, 0.854 mol dissociate.

    TABLE \(\PageIndex{2}\) The Dissociation of 1 mol \(N_2O_4\) into NO2 at 407.2 K (134°C) and Various Volumes.

    Amount of N2O4 Added


    Volume of Flask


    Fraction N2O4 Dissociated

    Amount N2O4 at Equilibrium


    Amount NO2 at Equilibrium


    Concentration N2O4 at Equilibrium


    Concentration NO2 at Equilibrium


    Equilibrium Constant Kc


    a 1 1 0.500 0.500 1.000 0.500 1.000 2.000
    b 1 2 0.618 0.382 1.236 0.191 0.618 2.000
    c 1 5 0.766 0.234 1.532 0.0468 0.3064 2.006
    d 1 10 0.854 0.146 1.708 0.0146 0.1708 1.998

    Since from Equation \(\ref{5}\) each mole which dissociates yields 2 mol NO2,there will be

    \[\text{0.854 mol N}_{2}\text{O}_{4}\times \frac{\text{2 mol NO}_{2}}{\text{1 mol N}_{2}\text{O}_{4}}=\text{1.708 mol NO}_{2} \nonumber \]

    present in the reaction vessel. There will also be (1 – 0.854) mol = 0.146 mol N2O4 left undissociated in the flask. Since the total volume is 10 L, the equilibrium concentrations are

    \[[\text{ NO}_{2}]=\frac{\text{1.708 mol}}{\text{10 L}}=\text{0.1708 mol/L} \nonumber \]


    \[[\text{ N}_{2}\text{O}_{4}]=\frac{\text{0.146 mol}}{\text{10 L}}=\text{0.0146 mol/L} \nonumber \]


    \[K_{c}=\frac{\text{1.708 mol/L}\times \text{ 0.1708 mol/L}}{\text{0.0146 mol/L}}=\text{2.00 mol/L} \nonumber \]

    In exactly the same way, if we use the data from line a in Table \(\PageIndex{2}\) , we find

    \[K_{c}=\frac{[\text{ NO}_{2}]^{2}}{[\text{ N}_{2}\text{O}_{4}]}=\frac{\text{(1.00 mol/L}\text{)}^{2}}{\text{0.5 mol/L}}=\text{2.00 mol/L} \nonumber \]

    You can check for yourself that lines b and c also yield the same value forKc.

    Example \(\PageIndex{1}\) : Equilibrium Constant

    When 2 mol N2O4 gas is heated to 407 K in a vessel of volume 5 dm3, it is found that 0.656 of the molecules dissociate into NO2. Show that these data are in agreement with the value for Kc of 2.00 mol dm–3 given in the text.


    Many equilibrium problems can be solved in a fairly standardized fashion in three stages.

    a) Calculate the amount of each substance transformed by the reaction as it comes to equilibrium, i.e., the amount of each reactant consumed by the reaction and the amount of each product produced by the reaction. Stoichiometric ratios derived from the equation must always be used in these calculations.

    In this particular example we note that 0.656 of the original N2O4 dissociates. Since 2 mol was used, a total of 0.656 × 2 = 1.312 mol N2O4 is consumed. The amount of NO2 produced is accordingly

    \(n_{\text{NO}_{2}}=\text{1.312 mol N}_{2}\text{O}_{4}\times \dfrac{\text{2 mol NO}_{2}}{\text{1 mol N}_{2}\text{O}_{4}}=\text{2.624 mol NO}_{2}\)

    b) Use the amounts calculated in the first stage to calculate the amount of each substance present at equilibrium. Dividing by the volume, we can obtain the equilibrium concentrations.

    Since 1.312 mol N2O4 dissociated out of an original 2 mol, we have (2 – 1.312) mol = 0.688 mol N2O4 left. The equilibrium concentration of N2O4 is thus

    \([\text{ N}_{2}\text{O}_{4}] = \dfrac{0.688\text{ mol N}_{2}\text{O}_{4}}{\text{ 5.00 dm}^{3}} = \text{0.1376 mol dm}^{-3}\)

    Since no NO2 was originally present, the amount of NO2 present at equilibrium is the amount produced by the dissociation, namely, 2.624 mol NO2. Thus

    \([\text{ NO}_{2}]=\dfrac{\text{2.624 mol NO}_{2}}{\text{5.00 dm}^{3}}=\text{0.525 mol dm}^{-3}\)

    It is usually worthwhile tabulating these calculations, particularly in more complex examples.

    Note that a negative quantity in the column headed Amount Produced indicates that a given substance (such as N2O4 in this example) has been consumed. There is less of that substance when equilibrium is reached than was present initially.


    Initial Amount


    Amount Produced


    Equilibrium Amount


    Equilibrium Concentration

    mol dm-3

    N2O4 2.00 -1.312 0.688 0.688/5
    NO2 0.00 2.624 2.624 2.624/5

    c) In the third stage we insert the equilibrium concentrations in an expression for the equilibrium constant:

    \(K_{c}=\dfrac{[\text{ NO}_{2}]^{2}}{[\text{ N}_{2}\text{O}_{4}]}=\dfrac{\text{0.525 mol dm}^{-3}\times \text{ 0.525 mol dm}^{-3}}{\text{0.1376 mol dm}^{-3}}=\text{2.00 mol dm}^{-3}\)

    This page titled 13.3: The Equilibrium Constant is shared under a CC BY-NC-SA 4.0 license and was authored, remixed, and/or curated by Ed Vitz, John W. Moore, Justin Shorb, Xavier Prat-Resina, Tim Wendorff, & Adam Hahn.
